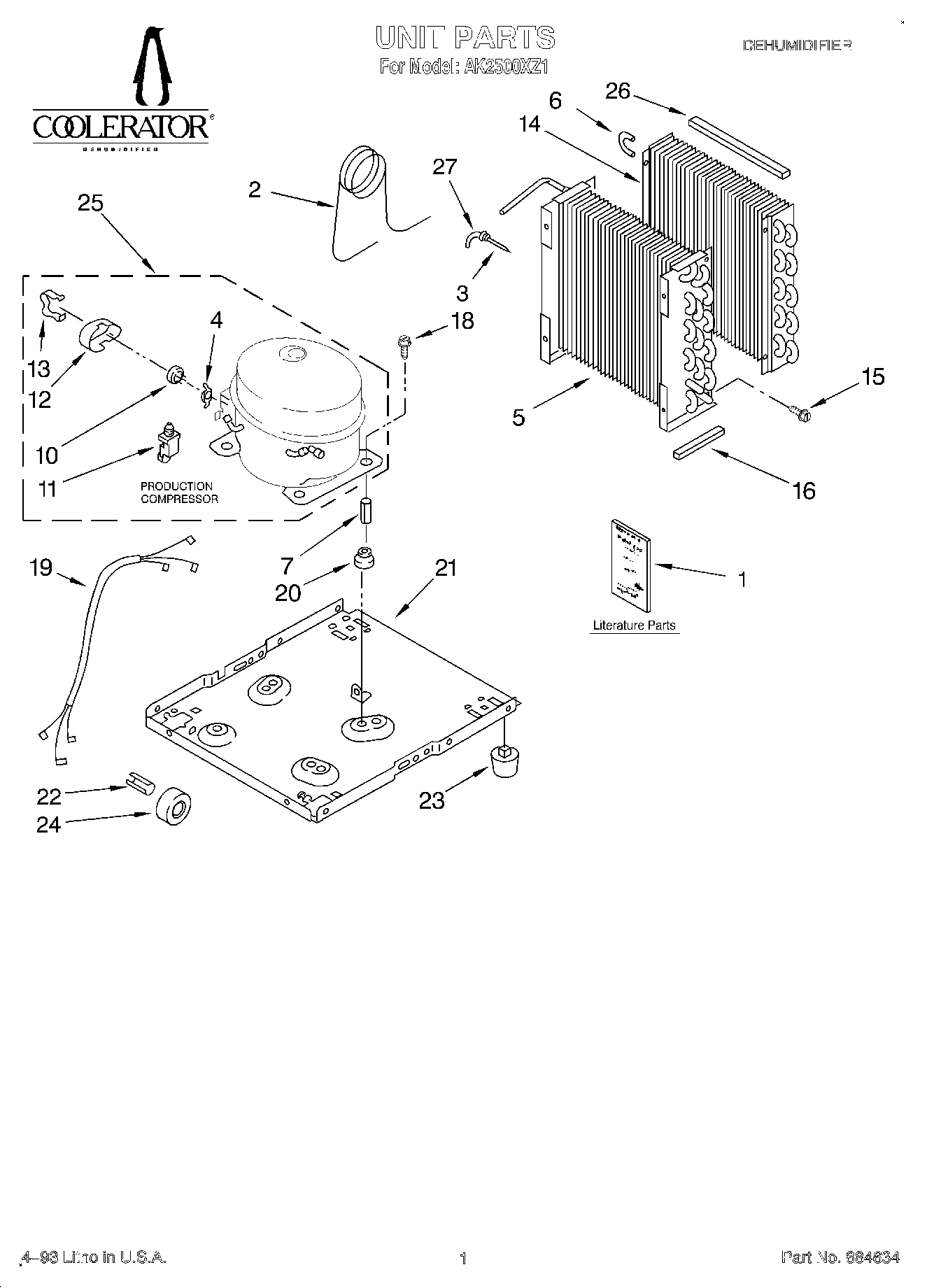

AK2500XZ1 01 – SECTION
Written by
in
AK2500XZ1 01 – SECTION
Products
Position
Product
1
Guide, Use And Care
1
Sheet, Tech
1
Wiring Diagram
1
Literature Parts (List, Repair Parts)
2
Tube, Restrictor (36.00“ Length)
3
Strainer
4
Spring, Overload
5
Condenser
6
Bend, Return Evaporator (11)
7
Sleeve (4)
10
OVERLOAD
10
Overload
11
WP2262181 Whirlpool Refrigerator Start Relay
11
Relay, Start (Production)
12
Cover, Terminal
12
Cover
13
Retainer, Cover
13
Strap
14
Evaporator
15
Screw, 8 x 3/8
16
Seal
18
Bolt, 1/4-28 x 1“ (4)
19
Harness, Wiring
20
Grommet (4)
21
Base
22
Pin, Roller (2)
23
Glide (2)
24
Roller (2)
25
Compressor, (Complete Assembly)
26
Seal, Evaporator Top
27
Bend, Return Evaporator (4)
←
