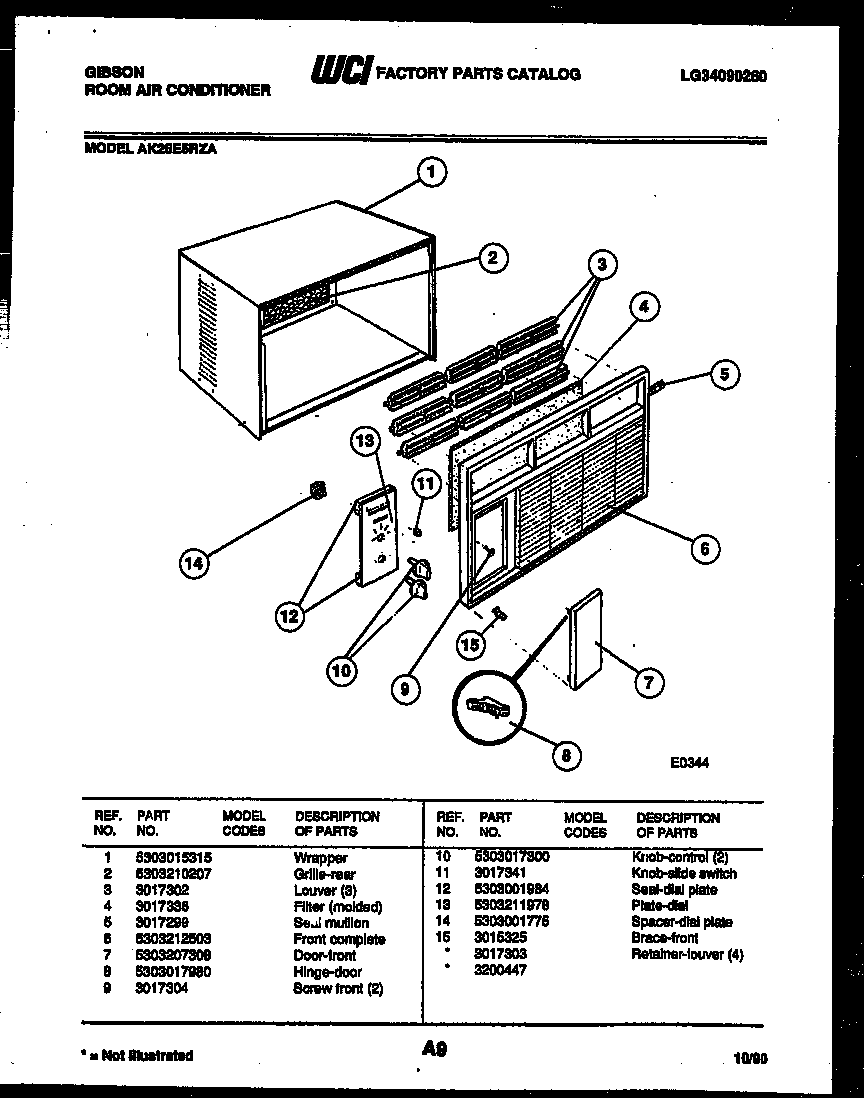

AK25E5RZA 02 – CABINET PARTS

Written by

Products

Position	Product
*34717	CLIP-SPRING (NON-ILLUSTRATED)
*34717	RETAINER-HORIZ LOUVER (NON-ILLUSTRATED)
1	SHELL-CABINET
2	WCI 5303210207
3	LOUVER-HORIZ
4	FILTER-AIR
5	WCI 3017299
6	WCI 5303212503
7	DOOR
8	HINGE – DOOR
9	WCI 3017304
10	WCI 5303017300
11	KNOB – SLIDE, SWITCH
12	WCI 5303001984
13	WCI 5303211978
14	WCI 5303001775
15	BRACE – FRONT (NON-ILLUSTRATED)
