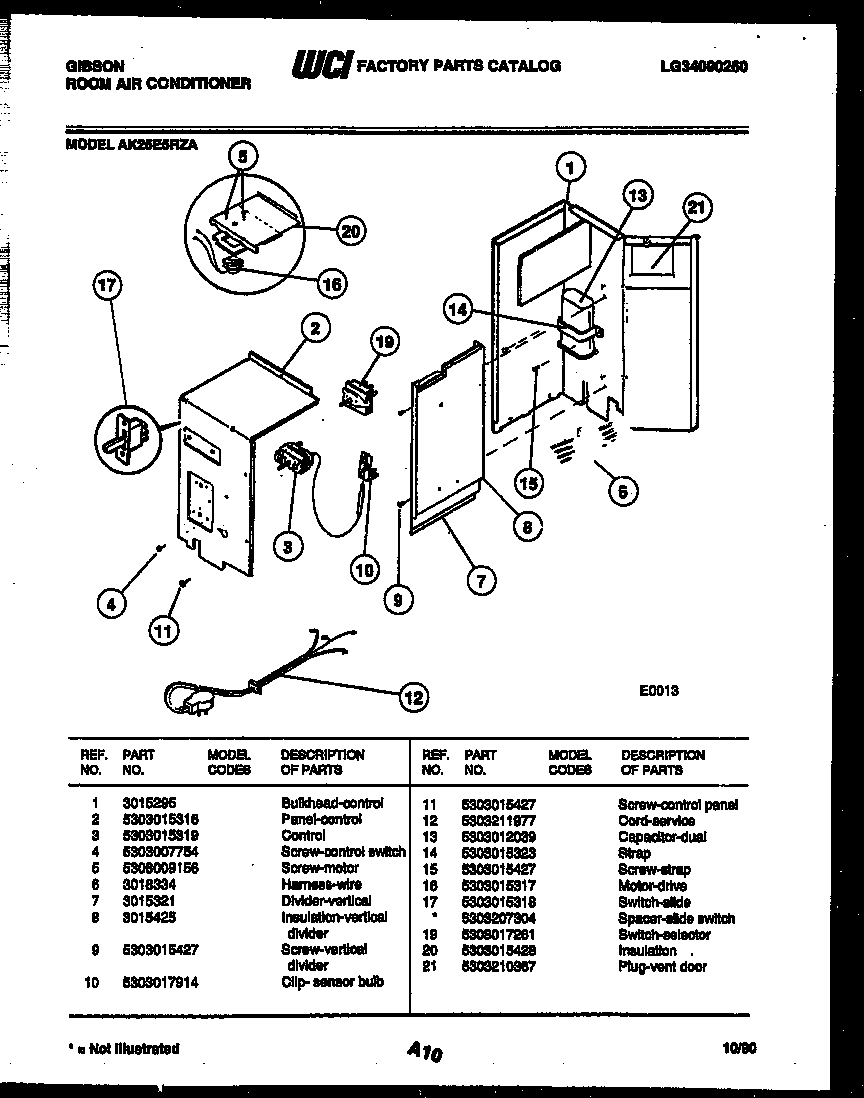

AK25E5RZA 03 – ELECTRICAL PARTS

Products

Position	Product
1	WCI 3015295
2	WCI 5303015316
3	WCI 5303015319
4	SCREW
5	SCREW-MOTOR
6	WIRE-HARNESS
7	WCI 3015321
8	WCI 3015425
10	SPACER-CONTROL BULB
12	WCI 5303211977
13	WCI 5303012039
14	STRAP
15	134178901 Frigidaire Screw
16	MOTOR-DRIVE
17A	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
17	SWITCH-SLIDE
19	WCI 5308017261
20	INSULATION
21	WCI 5303210367
