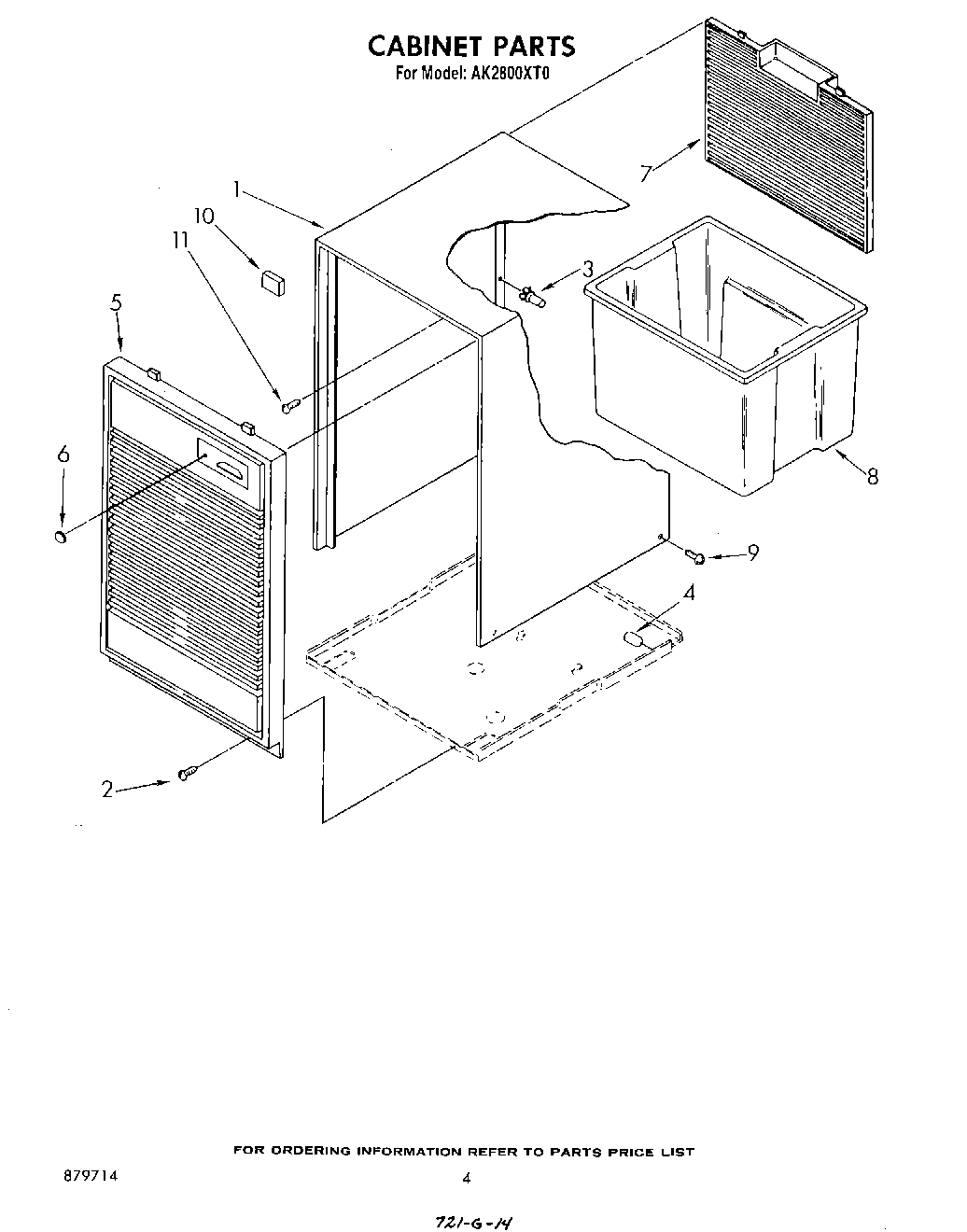

AK2800XT0 04 – SECTION

Products

Position	Product
	List, Repair Parts
	Sheet, Tech And Wiring Daigram
	Guide, Use And Care
1	Cabinet
2	WPW10141625 Whirlpool Refrigerator Screw Assembly
3	Retainer Pin (Rear Grille)
4	cap, thread
5	Grille, Front
6	Lens, Light
7	Grille, Rear
8	Pan, Condensate
9	Screw, 8-32 x 3/8 (6)
10	Spacer, Grille
11	978027 Whirlpool Refrigerator Primary Valve
11	Kit, Evaporator Repair (Aluminum Epoxy)
11	978026 Whirlpool Refrigerator Primary Valve
11	WP488729 Whirlpool Refrigerator Door Screw
11	WP16123 Whirlpool Washer
11	978030 Whirlpool Refrigerator Valve
11	WP978025 Whirlpool Refrigerator Valve
11	Cap, Condensate Pan
11	VALVE, ACCESS (1/2“)
11	Seal, Ring (Access Valve) (20 – Pack)
11	No Drip Tape (For Sweating Tubes)
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
11	VALVE, ACCESS (5/8“)
