AK4000XV0 02 – SECTION

Products

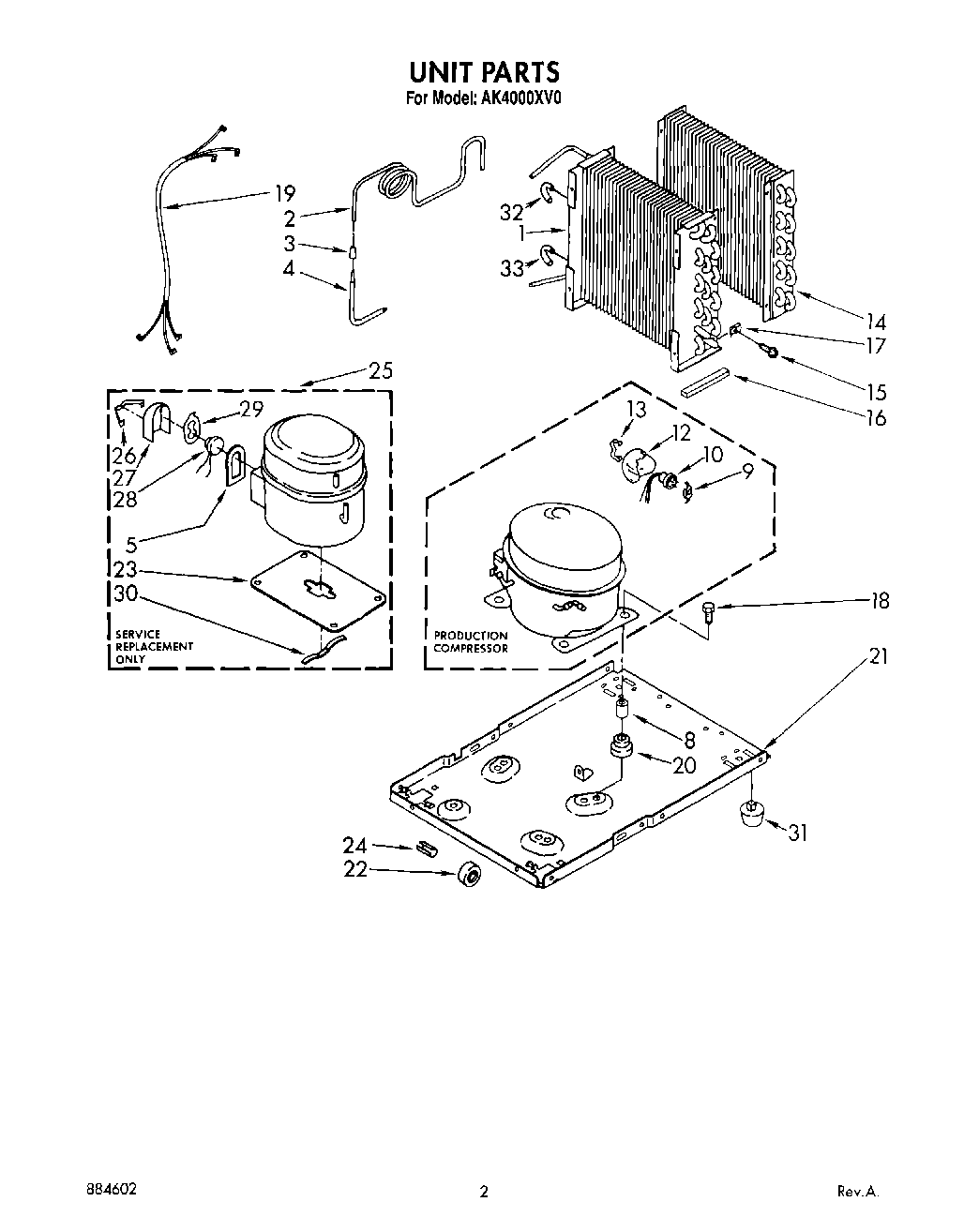

PositionProduct
1Condenser
2Tube, Restrictor (46.0“ Length)
3Strainer
4Tube, Outlet (Includes No.3)
5Gasket, Cover
8Sleeve (4)
9Spring, Overload
10Overload, Protector
12Cover, Terminal
13Retainer, Cover
14evaporator
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Roller (2)
23Plate, Compressor
24Pin, Roller (2)
25Compressor, Service (Complete Assembly)
26Retainer, Cover
27Cover, Terminal
28Overload
29Spring, Overload
30Spring, Clip
31Glide (2)
32Bend, Return Evaporator (11)
33Bend, Return Evaporator (4)
