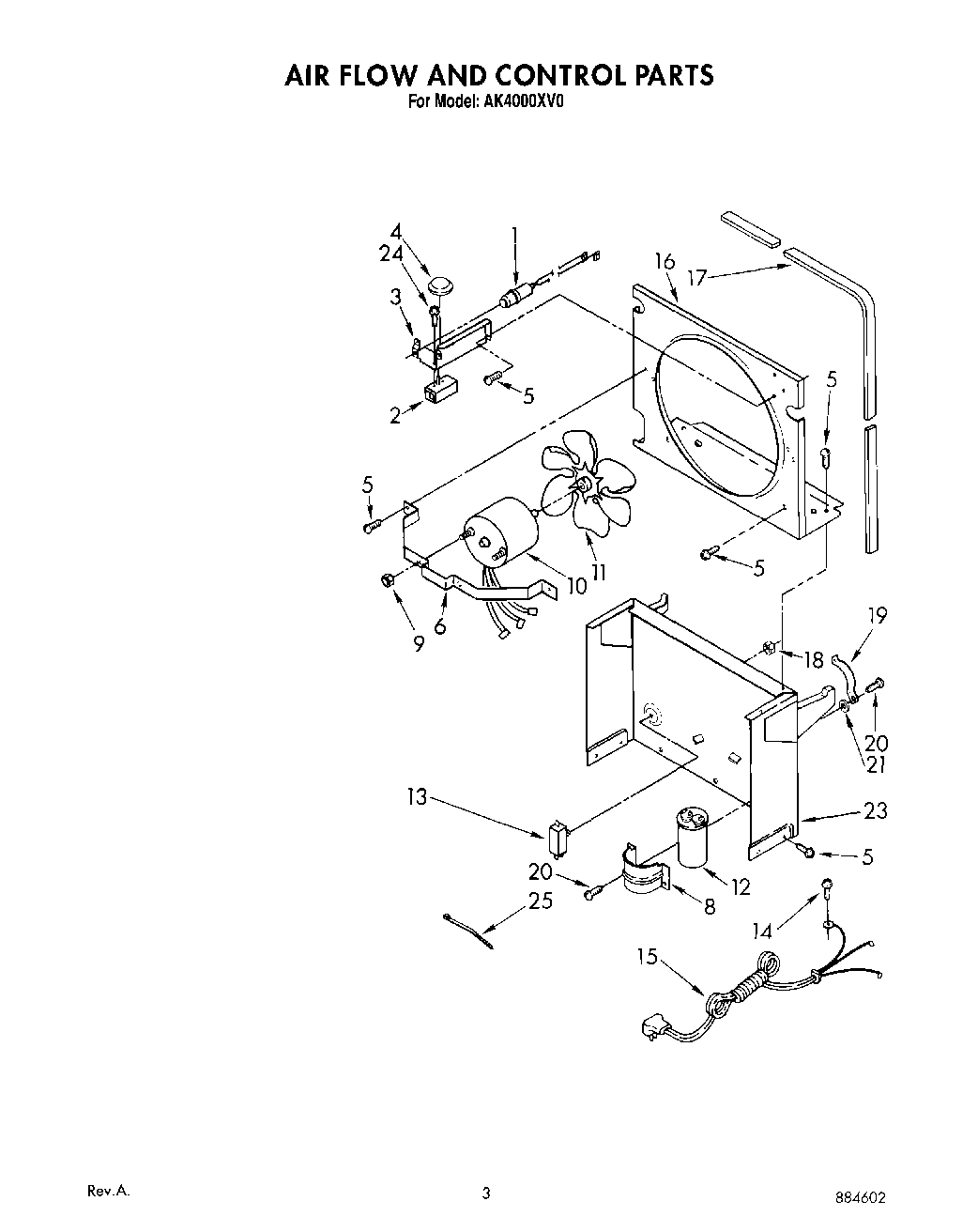

AK4000XV0 03 – SECTION

Written by

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Control
4	Knob, Humidistat Control
5	Screw, 8 x 3/8
6	Bracket, Fan Motor Mounting
8	Bracket, Capacitor
9	WP488130 Whirlpool Air Conditioner Nut
10	Motor, Fan
11	Blade, Fan
12	Capacitor, Run
13	Switch, Water Level Control
14	WPW10141604 Whirlpool Screw
15	Cord, Appliance
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP489069 Whirlpool Compactor Screw
21	Washer (Repair) (.062 Thickness)
21	Washer, Repair (.045 Thickness)
21	Washer (Repair) (.091 Thickness)
23	Support
24	Screw, 8 X 1/4
25	WPW10339879 Whirlpool Wire Tie
