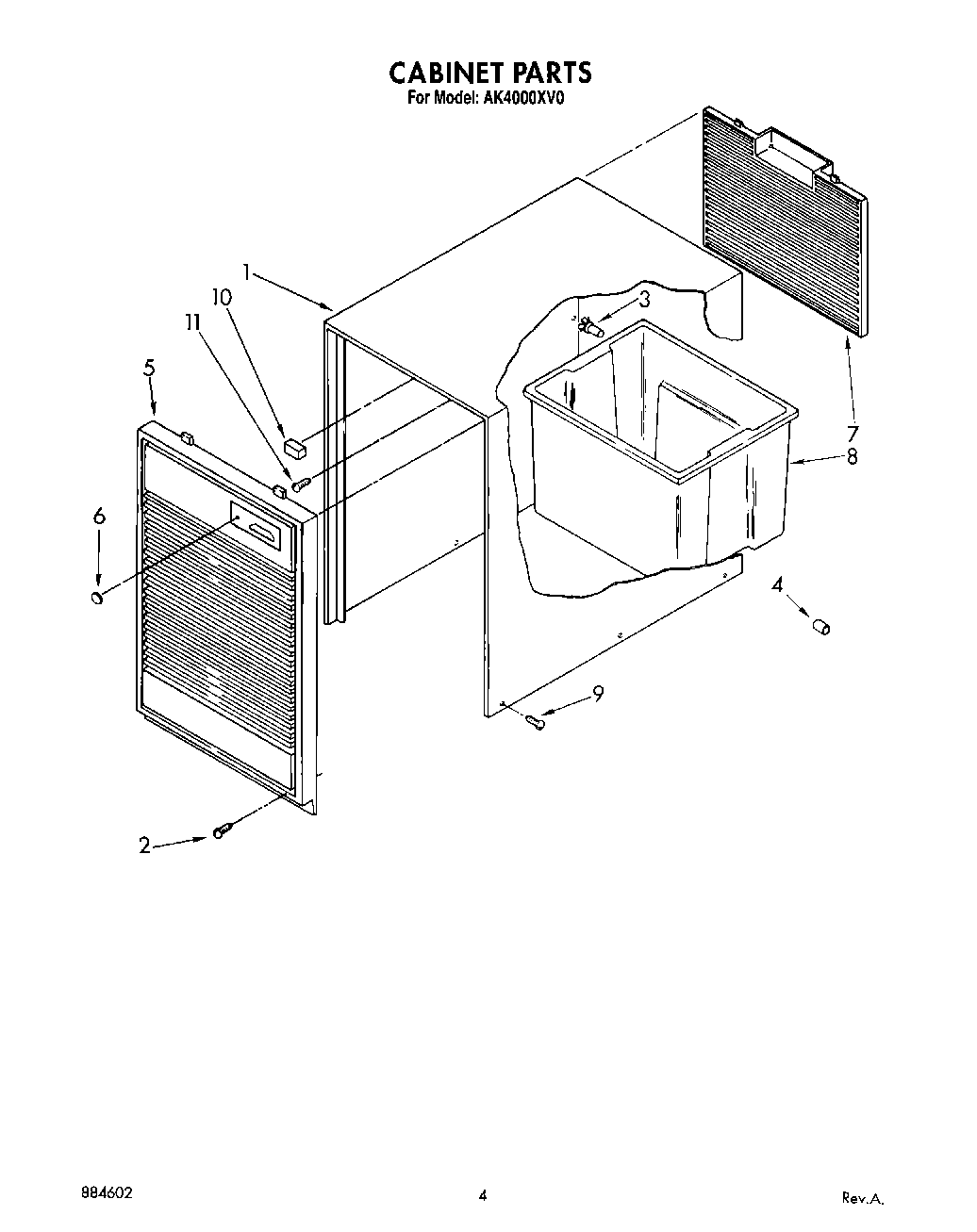

AK4000XV0 04 – SECTION

Written by

Products

Position	Product
	List, Repair Parts
	Wiring Daigram
	Sheet, Tech And
	Guide, Use And Care
1	Cabinet
2	WPW10141625 Whirlpool Refrigerator Screw Assembly
3	Retainer Pin (Rear Grille)
4	cap, thread
5	Grille, Front
6	Lens, Light
7	Grille, Rear
8	Pan, Condensate
9	Screw, 8-32 x 3/8 (6)
10	Spacer, Grille
11	Seal, Ring (Access Valve) (20 – Pack)
11	WP16123 Whirlpool Washer
11	WP488729 Whirlpool Refrigerator Door Screw
11	978026 Whirlpool Refrigerator Primary Valve
11	978027 Whirlpool Refrigerator Primary Valve
11	978030 Whirlpool Refrigerator Valve
11	WP978025 Whirlpool Refrigerator Valve
11	VALVE, ACCESS (1/2“)
11	WPL 799833
11	Cap, Condensate Pan
11	Oil, Turbine 1 Fl. Oz.
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
11	No Drip Tape (For Sweating Tubes)
11	VALVE, ACCESS (5/8“)
