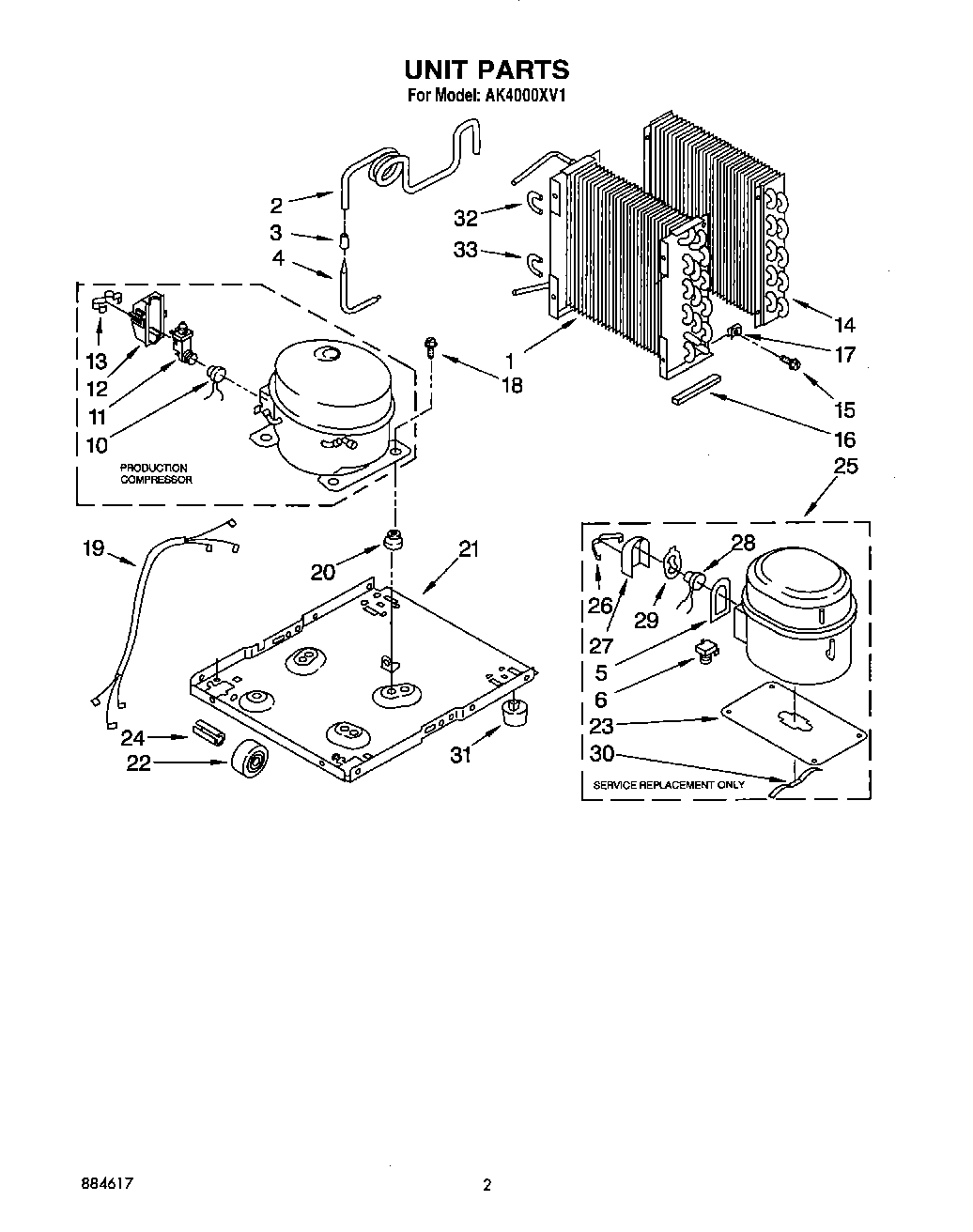

AK4000XV1 02 – SECTION

Written by

Products

Position	Product
1	Condenser
2	Tube, Restrictor (Length 36.0“)
3	Strainer
4	Tube, Outlet (Includes No.3)
5	Gasket, Cover
6	Relay, Start (Service)
10	Overload (Production)
11	Relay, Start (Production)
12	Cover, Terminal (Production)
13	Strap
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
23	Plate, Compressor
24	Pin, Roller (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover (Service)
27	Cover, Terminal (Service)
28	Overload (Service)
29	Spring, Overload
30	Spring, Clip
31	Glide (2)
32	Bend, Return Evaporator (11)
33	Bend, Return Evaporator (4)
