AK4000XZ2 02 – SECTION

Products

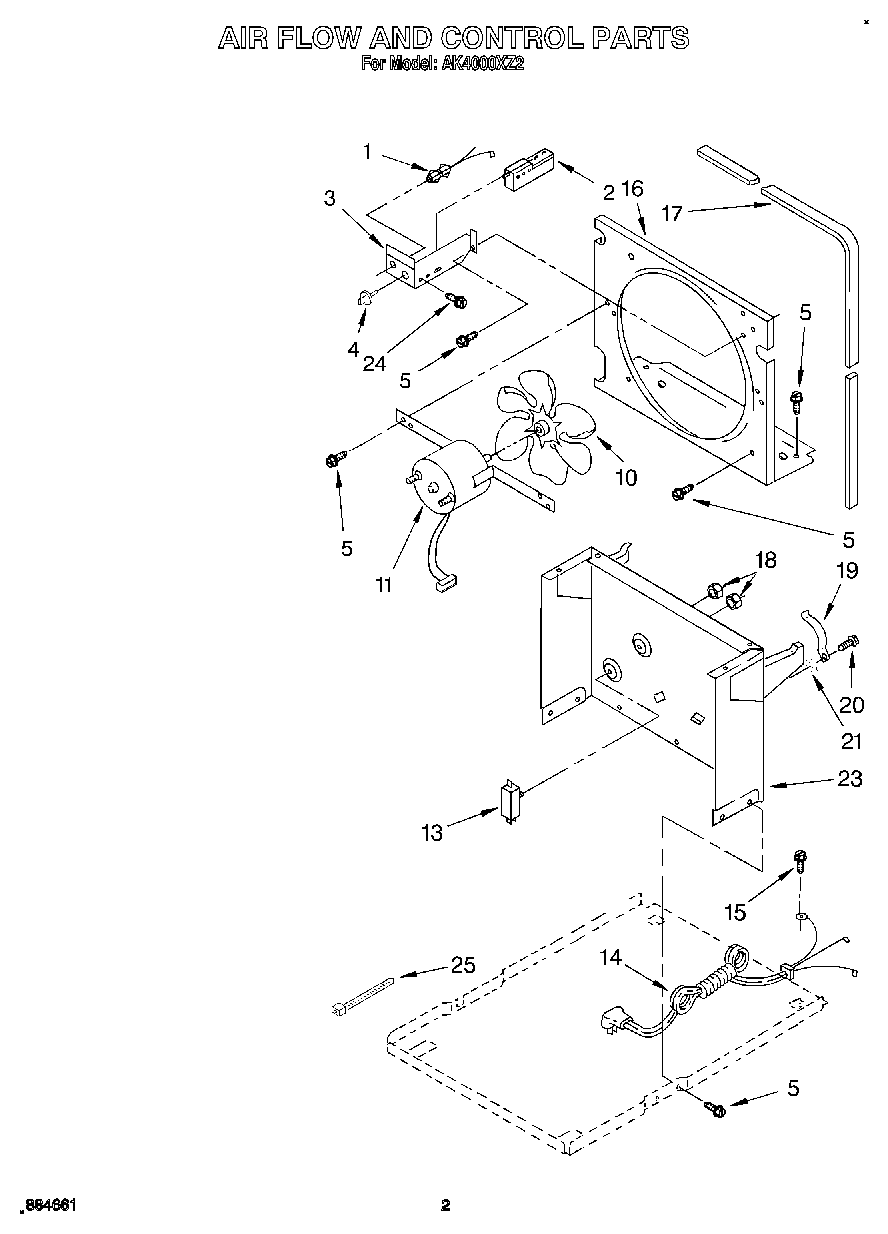

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Humidistat
4Knob, Humidistat Control
5WP489069 Whirlpool Compactor Screw
10Blade, Fan
11Motor, Fan
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20Screw 8-18 x 5/8
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.091 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
