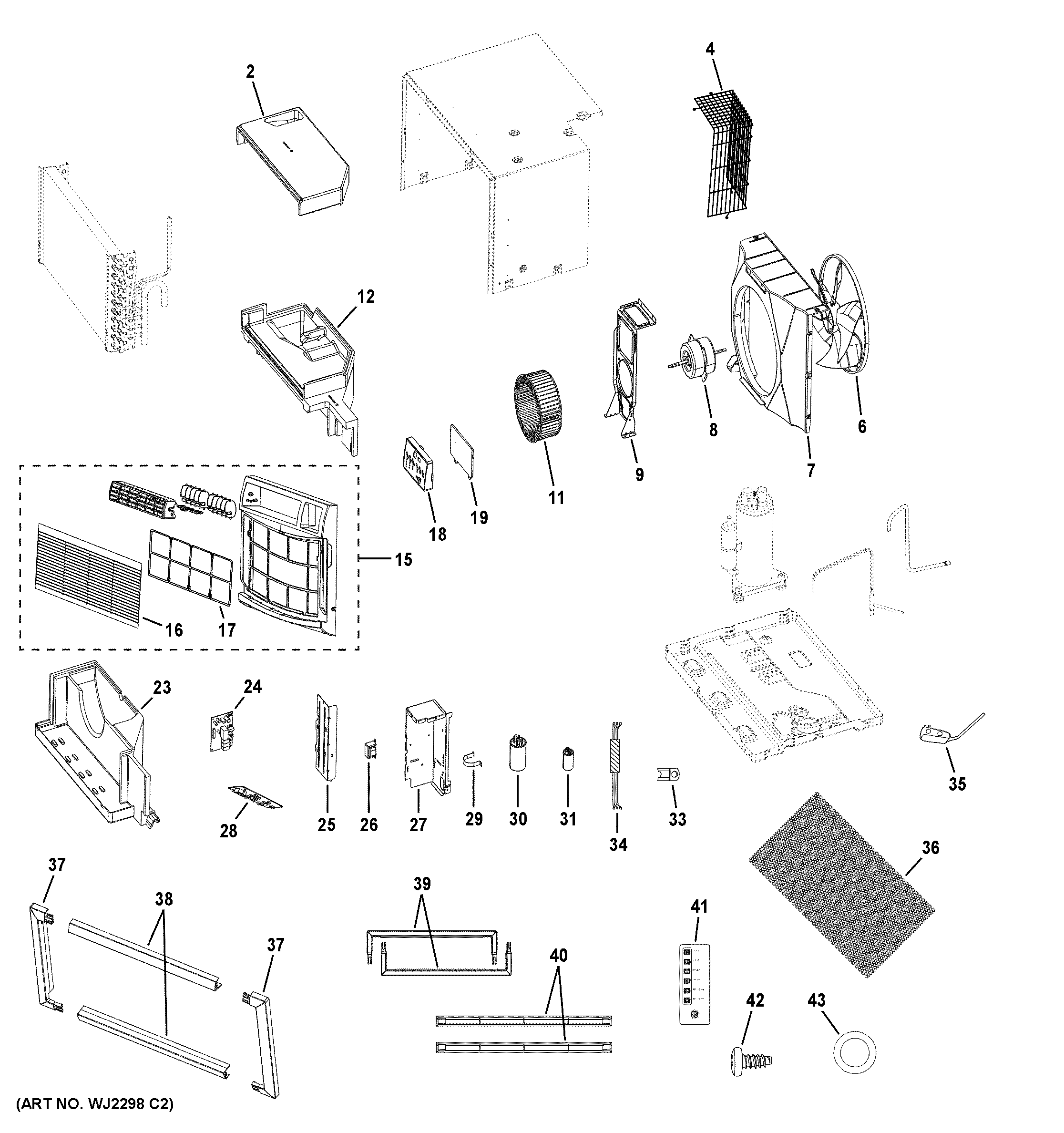

AKCQ08ACA ROOM AIR CONDITIONERadmin2025-04-26T08:40:56+00:00AKCQ08ACA ROOM AIR CONDITIONER ProductsPositionProduct2WJ76X21764 GE Top Case Scroll4WIRE CASE6OUTDOOR FAN7WJ76X20093 GE Rear Partition Board8FAN MOTOR9MOTOR BRACKET11INDOOR FAN12WJ76X21765 GE Scroll Case Middle15WJ71X24772 GE Front Panel Assembly16WJ71X24773 GE Grill Front Panel17WJ85X22380 GE Filter18WJ71X21763 GE Display Panel19WJ26X21767 GE Cover Board23WJ76X21766 GE Bottom Scroll Case24WJ26X21775 GE Air Conditioner User Interface Board25CONTROL BOX COVER26WJ27X21772 GE Transformer Assembly27WJ05X20076 GE Control Box28WJ29X20075 GE Air Conditioner Control Board29CAPACITOR CLAMP30CAPACITOR31WJ20X22165 GE Capacitor33WJ05X20101 GE Wire Clamp34WJ36X10023 GE Harness35POWER CORD36WJ71X21769 GE Grill Rear37WJ68X22863 GE Frame38WJ66X22862 GE Frame39WJ66X22860 GE Frame40WJ66X22861 GE Frame41WJ26X23777 GE Air Conditioner Remote Control42WJ01X23759 GE Screw43GASKET
