AKCQ12ACA ROOM AIR CONDITIONER

Products

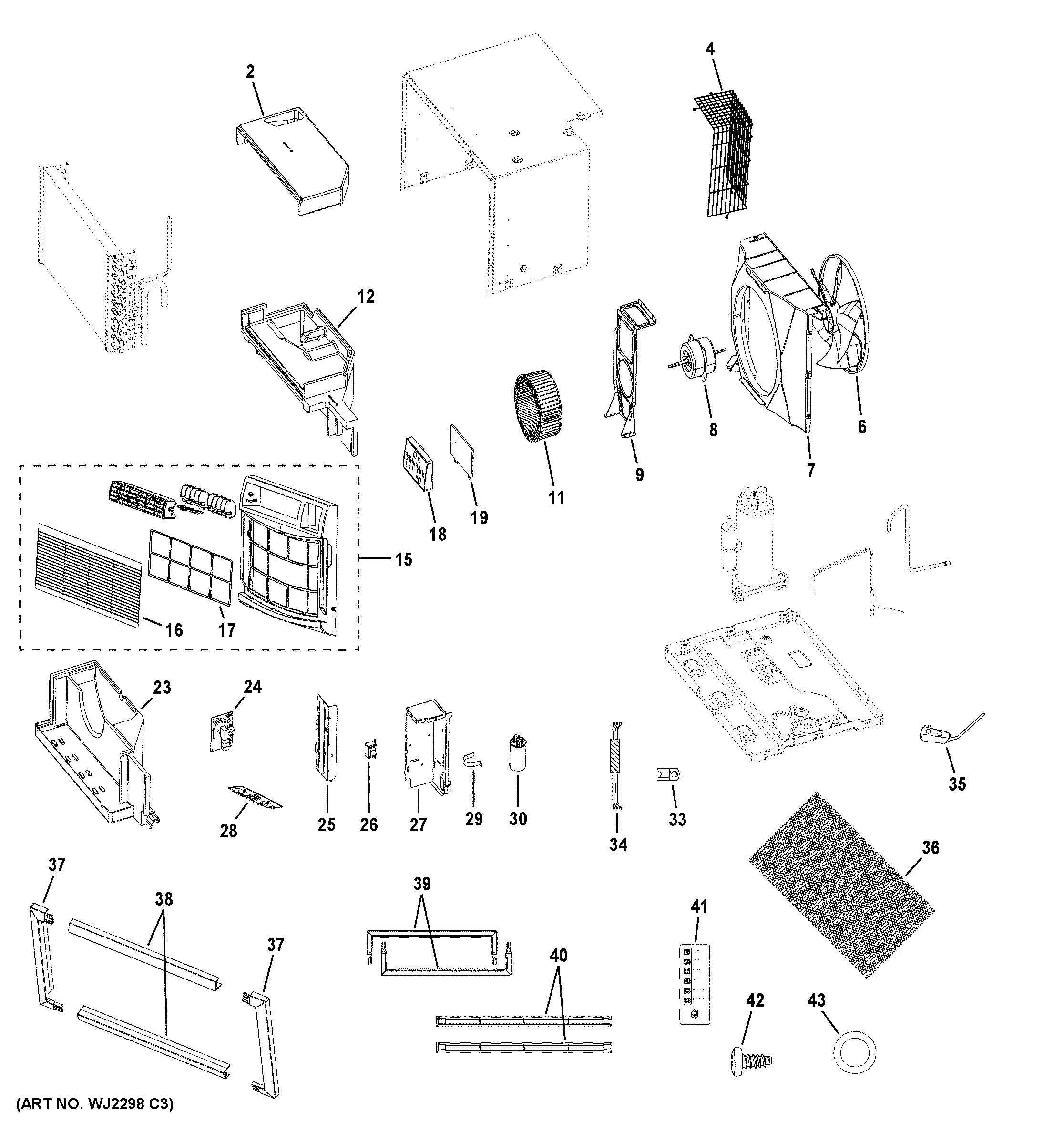

Position	Product
2	WJ76X21764 GE Top Case Scroll
4	WIRE CASE
6	WJ73X20065 GE Air Conditioner Axial Fan
7	WJ76X20093 GE Rear Partition Board
8	WJ94X21770 GE Fan Motor
9	MOTOR BRACKET
11	WJ73X21768 GE Centrifugal Fan
12	WJ76X21765 GE Scroll Case Middle
15	WJ71X24772 GE Front Panel Assembly
16	WJ71X24773 GE Grill Front Panel
17	WJ85X22380 GE Filter
18	WJ71X21763 GE Display Panel
19	WJ26X21767 GE Cover Board
23	WJ76X21766 GE Bottom Scroll Case
24	WJ26X21775 GE Air Conditioner User Interface Board
25	CONTROL BOX COVER
26	WJ27X21772 GE Transformer Assembly
27	WJ05X20076 GE Control Box
28	WJ29X20075 GE Air Conditioner Control Board
29	WJ1X21762 GE Capacitor Clamp
30	WJ20X21774 GE Air Conditioner Capacitor
33	WJ05X20101 GE Wire Clamp
34	WJ36X10023 GE Harness
35	POWER CORD
36	WJ71X21769 GE Grill Rear
37	WJ68X22863 GE Frame
38	WJ66X22862 GE Frame
39	WJ66X22860 GE Frame
40	WJ66X22861 GE Frame
41	WJ26X23777 GE Air Conditioner Remote Control
42	WJ01X23759 GE Screw
43	GASKET
