AKFW1140 02 – SECTION

Products

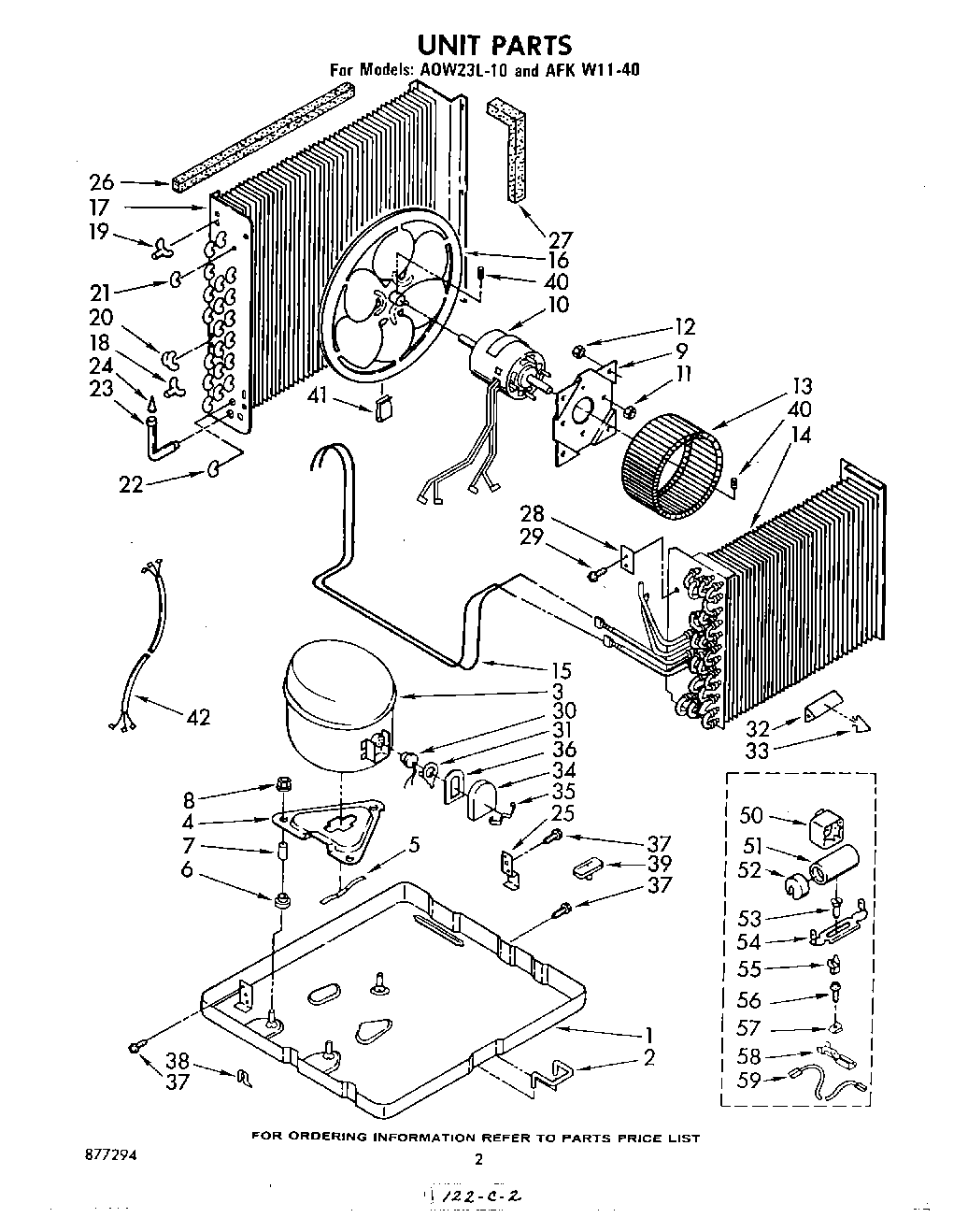

Position	Product
1	Base Assembly
2	WPL 647971
3	Compressor Assembly
4	Plate, Compressor
5	Spring, Clip
6	Grommet, Compressor (3)
7	Sleeve, Compressor (3)
8	Locknut (3)
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator Assembly
15	Tube, Restrictor (2) (Length 36.0“)
16	Blade, Fan
17	Condenser Assembly
18	Bend, Return 3-Way
19	Bend, Return (3-Way)
20	Bend, Return Evaporator (4)
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
26	WPL 649609
27	WPL 649610
28	Cover, Tube Opening
29	WP965173 Whirlpool Dishwasher Screw
30	Overload
31	Spring, Overload
32	Anticipator, Temperature
33	Clip, Anticipator
34	Cover, Terminal
35	Retainer, Terminal Cover
36	Gasket, Terminal Cover
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	WPL 647850
40	Setscrew, 5/16 x 1/4
41	Clip, Balancing
42	Harness, Wiring
50	Relay, Start
51	Capacitor (Component Of Start Kit)
52	Cap, Capacitor (Component Of Start Kit)
53	Screw, 10 x 5/8 (Component Of Start Kit)
54	Bracket, Capacitor (Component Of Start Kit)
55	Multiplier, Terminal (Component Of Start Kit)
57	488660 Whirlpool Refrigerator Nut
58	Clip, Terminal (Component Of Start Kit)
59	Kit, Evaporator Repair (Aluminum Epoxy)
59	VALVE, ACCESS (5/8“)
59	xWire
59	St
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	Oil, Turbine 1 Fl. Oz.
59	No Drip Tape (For Sweating Tubes)
59	WPL 484220
