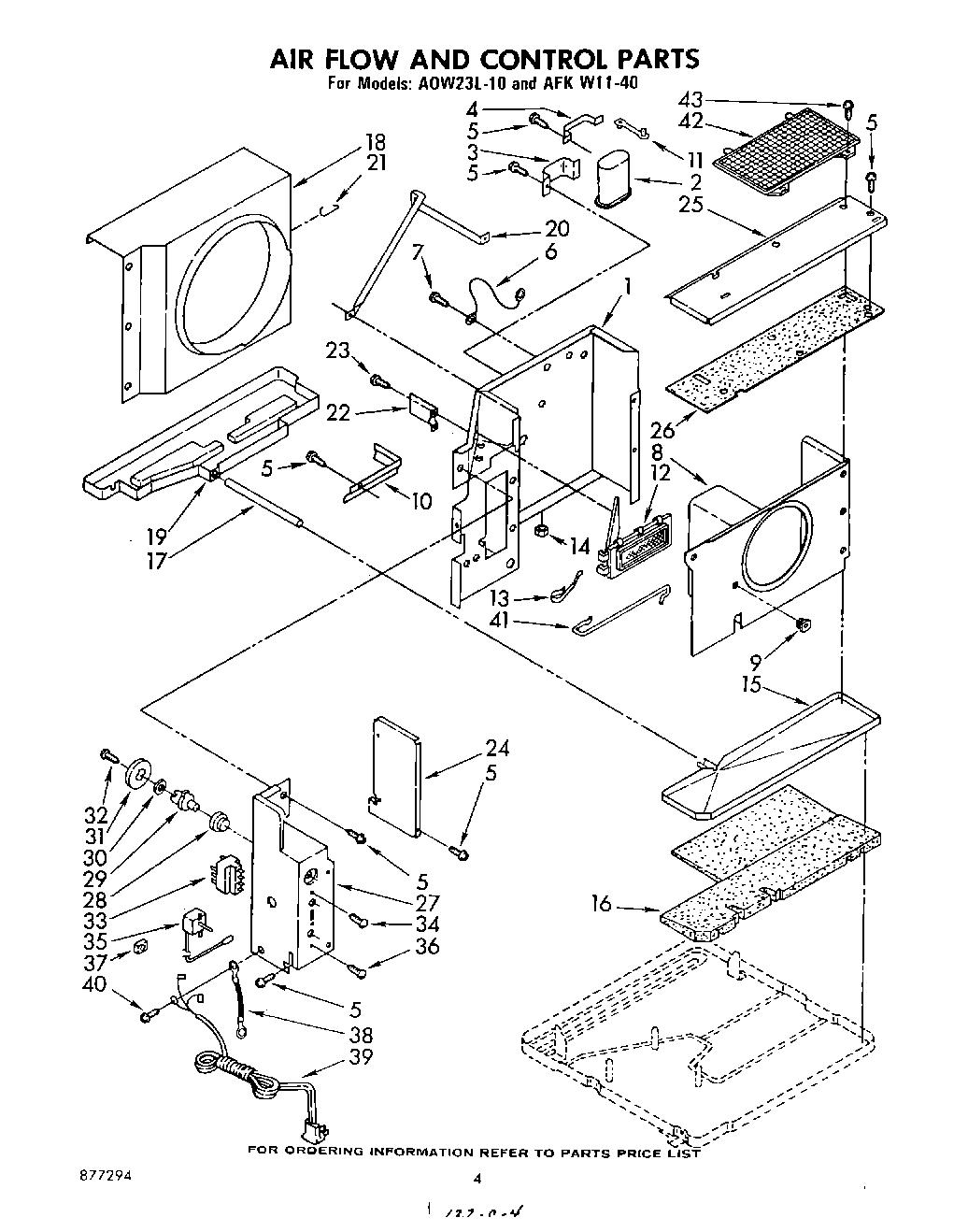

AKFW1140 03 – SECTION

Products

Position	Product
1	Wall, Dividing (Requires 649939 Insulation)
2	Capacitor, Running
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Wire, Ground
8	Housing, Blower Wheel
9	Fastener, snap (2)
10	Channel, Wiring
11	Clamp, Cable
12	Door, Exhaust
13	Spring, Door
14	Clip, Speed
15	Pan, Evaporator Condensate
16	Insulation, Condensate Pan
17	Tube, Condensate
18	Shroud, Condenser
19	Pan, Condenser Condensate
20	Support, Unit
21	Clip, Shroud (3)
22	Cover, Wall
23	WP965173 Whirlpool Dishwasher Screw
24	Dividing Wall Assembly, L.S.
25	Cover, Evaporator
26	Insulation, Evaporator Cover
27	Box, Control
28	Bushing, Shaft
29	Shaft, Control
30	Washer
31	Cam, Exhaust
32	WP488787 Whirlpool Refrigerator Screw
33	Switch, Pushbutton
34	Screw, 6-20 x .362
35	Control, Tempetature
36	Screw, 6-32 x .175
37	Grommet
38	Wire, Ground
39	Cable
40	WPW10141604 Whirlpool Screw
41	Wire, C
42	Guard, Evaporator Impeller
43	212643 Whirlpool Refrigerator Permagum Sealer
43	WPL 947597
43	WP488729 Whirlpool Refrigerator Door Screw
43	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
43	WPL 877294
43	Wire, 25“ Roll (White 12 GA.)
43	WPL 799351
43	Wire, Red, (25 Ft.)
43	Lacquer, Starlight Gray (1/2 Pt. Uncut)
43	Wire, 25“ Roll (Black 12 GA.)
43	WPL 949407
