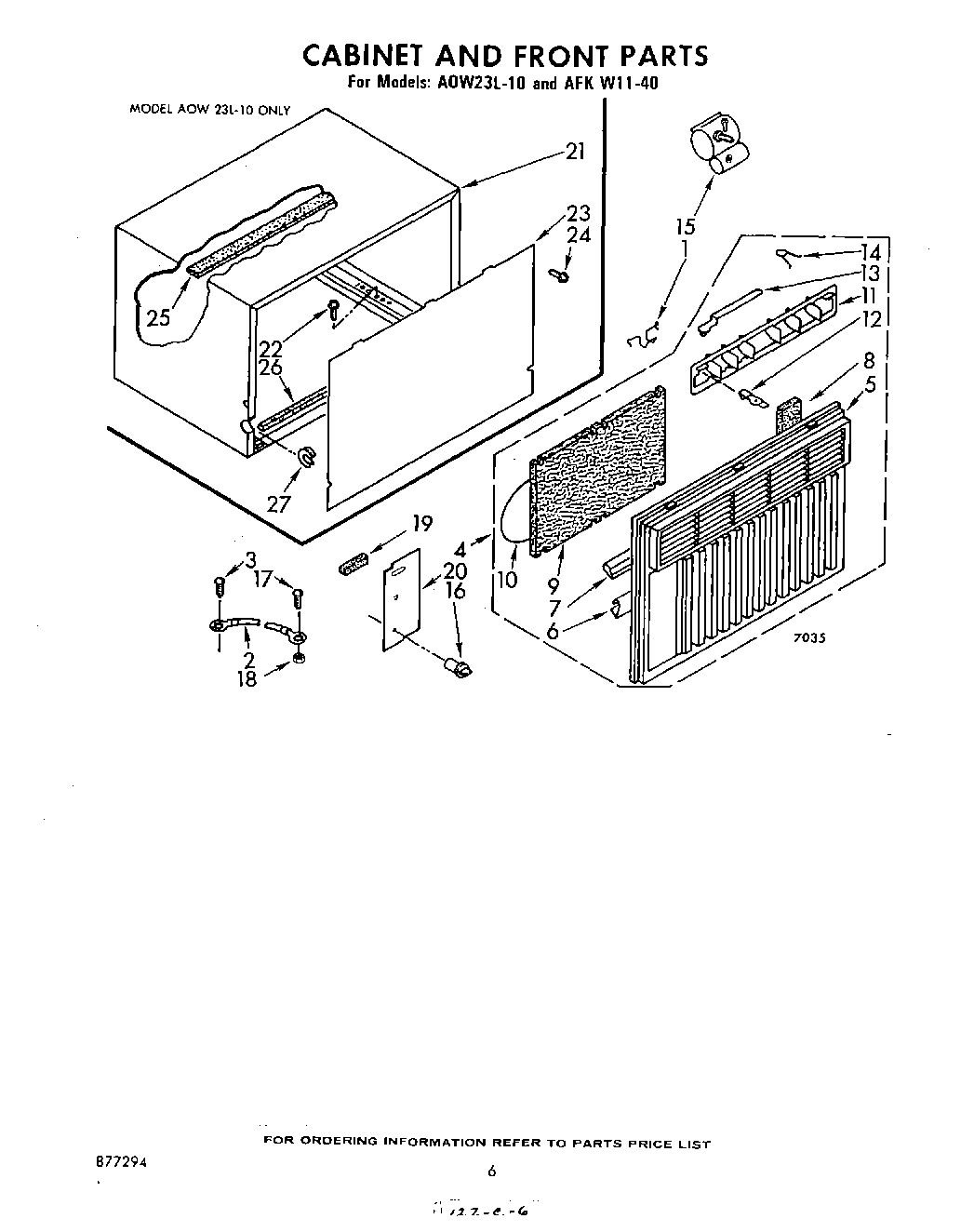

AKFW1140 04 – SECTION

Products

Position	Product
	WPL 647847
	seal, weather
	xInsulation, Cabinet (Top)
1	Clip (2)
2	Wire, Ground
3	Front, Cabinet Assembly
3	Screw, 8 x 3/8
5	front, cabinet
6	WP854334 Whirlpool Air Conditioner Sealing Strip
7	Seal
8	Seal
9	Filter
10	Retainer, Filter
11	Louver, Vertical
12	Handle, Vertical Louver (2)
13	Link, Vertical Louver (2)
14	Detent Spring (2)
15	Bag, Accessory
16	Knob, Control
17	Screw, 8 x 3/8
18	WP486255 Whirlpool Air Conditioner Nut
19	Plate, Escutcheon
20	Spacer, Escutcheon Plate (3)
21	xCabinet (Requires Insulation 649939)
22	Screw (Window Lock Bracket)
23	Panel, Front
24	WP487353 Whirlpool Refrigerator Screw
25	Insulation, Cabinet (L.S.)
26	Seal, Cabinet (Bottom)
27	Grommet, Appliance Cable
