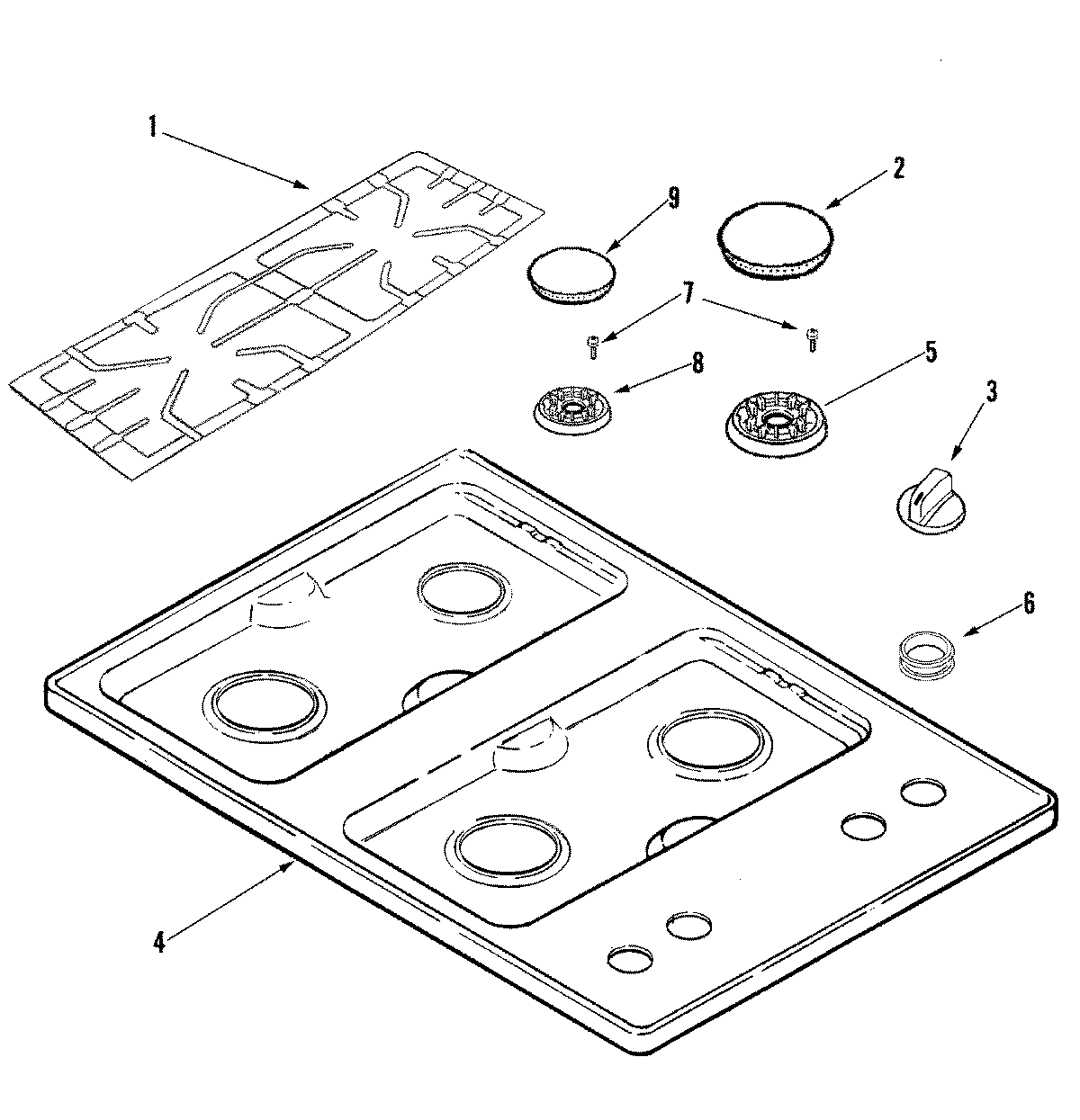

AKS3040BWW 03 – TOP ASSEMBLY

AKS3040BWW 03 – TOP ASSEMBLY

Written by

in

AKS3040BWW 03 – TOP ASSEMBLY

Products

PositionProduct
1W10919249 Whirlpool Burner Grate Foot
1MAY 74007865
2WP74007752 Whirlpool Burner Cap (Medium Gray)
3MAY 74007868
4MAY 74007872
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6WP74007705 Whirlpool Grommet
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9CAP, BURNER (SMR-GRY)
