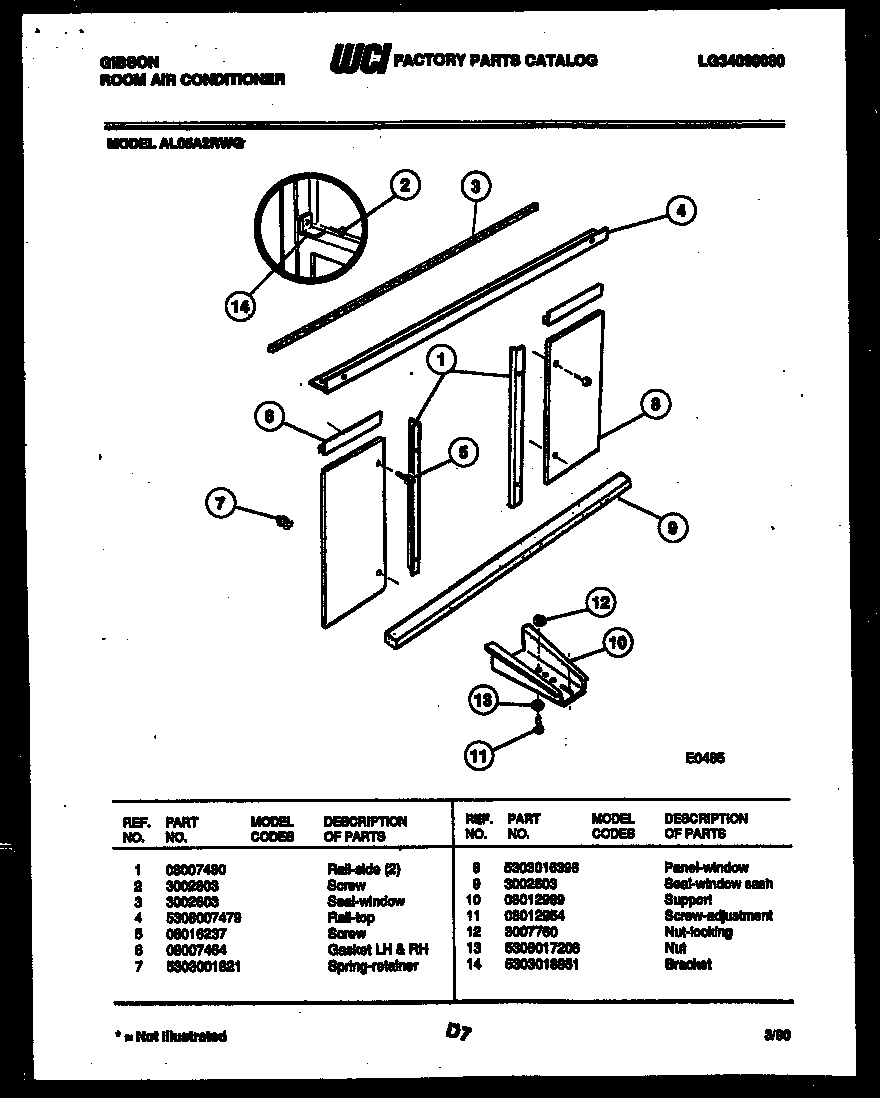

AL05A2RWG 06 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
1	RAIL-SIDE (2)
2	SCREW-WOOD
4	WCI 5308007479
5	WCI 08016237
6	GASKET LH & RH
7	CLIP-SPRING
8	WCI 5303016396
9	5304407729 Frigidaire Air Conditioner Seal
10	SUPPORT
11	SCREW-ADJ
12	WCI 3007760
13	NUT
14	ANGLE-STOP
