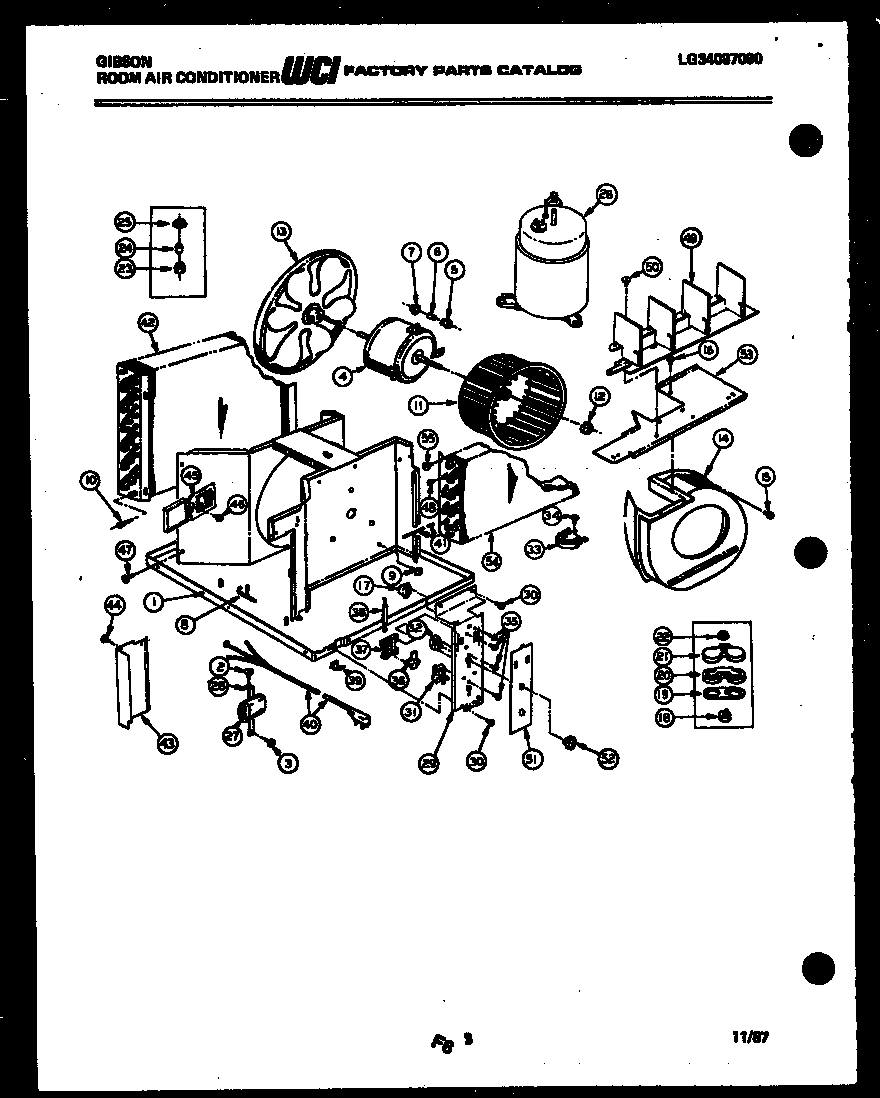

AL05A4ESBB 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G521069
2	SCREW
4	WCI G523329
5A	5300809968 Frigidaire Dishwasher P-1 Washer
5	GROMMET
6	SLEEVE
7	NUT
8	WCI G519641-01
8A	SCREW – 8 X 1/4 (2)
9	SCRW-NO. 8 X 3/8 (4)
10	STRAINER-FILTER
11	WHEEL-BLOWER
12	RING-COMPRESSION
13	FAN SLINGER RING
14	HOUSING-BLOWER
18	OVERLOAD
19	WCI G516949
20	COVER – TERMINAL
21	CAP – TERMINAL COVER
22	WCI G516950
23	GROMMET – COMPRESSOR (3)
24	WCI G516954
25	NUT-COMPR (3)
26	COMPRESSOR
27	WCI G511898-02
28	WCI G515461
29	WCI G520900
31	SW-ROTARY-5 POS. (NON-ILLUSTRATED)
32	WCI G520897
35	SCRW-CNTRL (4)
39	CLIP-FRONT
40	CORD-SERVICE
41	CAPILLARY TUBE
42	CONDENSER
43	COVER-CONTROL
48	TUBE-CONN (2)
49	LOUVER AND LINK ASSY (NON-ILLUSTRATED)
52	KNOB-CNTL
53	WCI G501351
54	WCI G522820
55	WCI G521208
