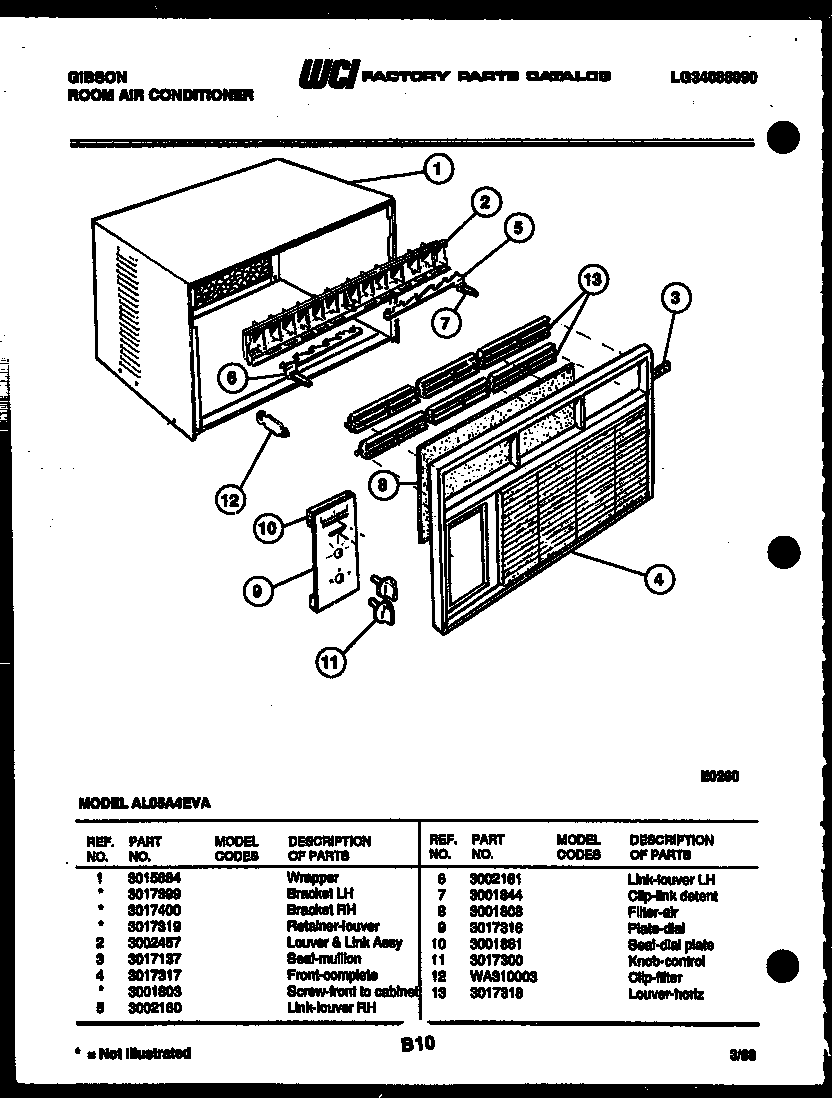

AL05A4EVA 02 – CABINET PARTS

Products

PositionProduct
1WRAPPER
1BWCI 3017400
1AWCI 3017399
1CRETAINER-HORIZONTAL LOUVER (NON-ILLUSTRATED)
2VERTICAL LOUVER & LINK ASSY
3WCI 3017137
4WCI 3017317
4AWCI 3001803
5LINK-VERT LOUVER RH
6LINK-VERT LOUVER LH
7CLIP-DETENT
8WCI 3001808
9WCI 3017316
10WCI 3001861
11WCI 3017300
12CLIP-RETAINER
13WCI 3017318
