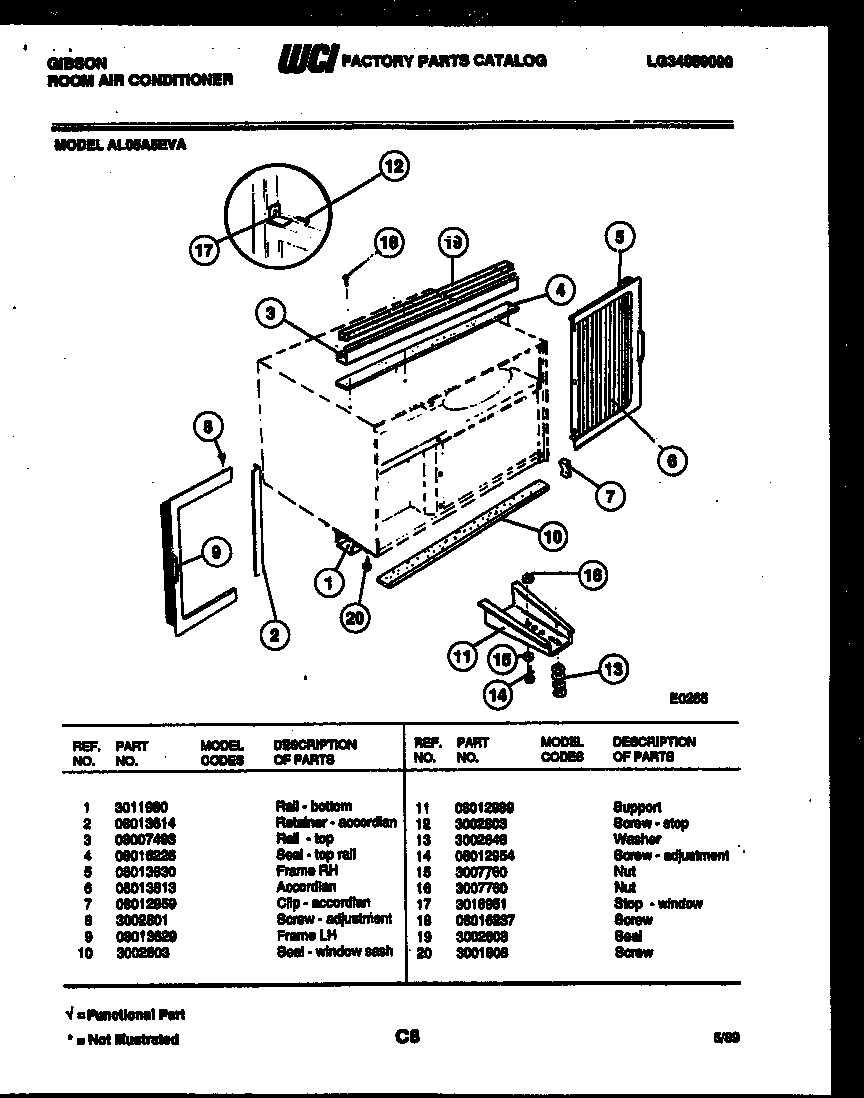

AL05A5EVA 06 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
1	RAIL-BOTTOM
2	WCI 08013614
3	RAIL-TOP
4	WCI 08016226
5	FRAME-EXTENSION RH
6	CLOSURE-ACCORDION
7	CLIP
8	WCI 3002801
9	FRAME, EXTENSION, LH
10	5304407729 Frigidaire Air Conditioner Seal
11	SUPPORT
12	SCREW-WOOD
13	WASHER SPACER
14	SCREW-ADJ
16	WCI 3007760
17	WCI 3018951
18	WCI 08016237
19	SEAL – WINDOW
20	SCREW
