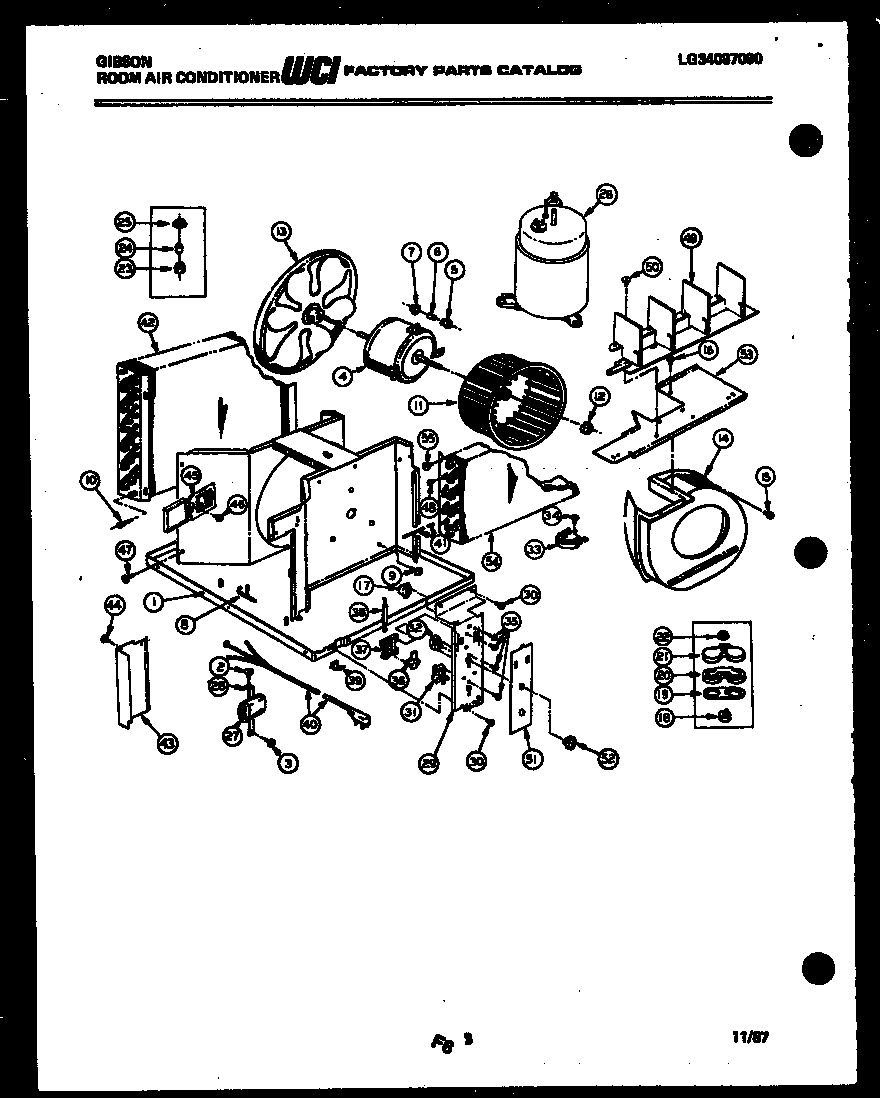

AL05A6ESBB 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	BASE
2	SCREW
4	WCI G523330
5A	5300809968 Frigidaire Dishwasher P-1 Washer
5	GROMMET
6	SLEEVE
7	NUT
8A	SCREW – 8 X 1/4 (2)
8	WCI G519641-01
10	STRAINER-FILTER
11	WHEEL-BLOWER
11A	GUARD-BLWR WHEEL
12	RING-COMPRESSION
13	FAN SLINGER RING
14	HOUSING-BLOWER
17	SWITCH ON-OFF
18	OVERLOAD
19	WCI G516949
20	COVER – TERMINAL
21	CAP – TERMINAL COVER
22	WCI G516950
23	GROMMET – COMPRESSOR (3)
24	WCI G516954
25	NUT-COMPR. MTG. (2)
26	COMPRESSOR
27	WCI G511898-02
28	WCI G515461
29	PANEL-CONTROL
30	154419403 Frigidaire Dishwasher Screw
31	SWITCH-5 POS
32	WCI G520897
33	MOTOR-LOUVER
34	SCREW – MOTOR TO DUCT (2)
35	SCREW-CNTL (6)
36	WCI G141654
37	WCI G137178
38	WCI G149680
39	CLIP-FRONT
40	CORD-SERVICE
41	CAPILLARY TUBE
42	CONDENSER
43	COVER-CONTROL
45	DOOR-EXHAUST
48	TUBE-CONN (2)
49	LOUVER AND LINK ASSY (NON-ILLUSTRATED)
51	WCI 3015307
52	KNOB-CNTL
53	WCI G501351
54	WCI G522820
55	WCI G516352
