AL06A5EVA 02 – CABINET PARTS

AL06A5EVA 02 – CABINET PARTS

Written by

in

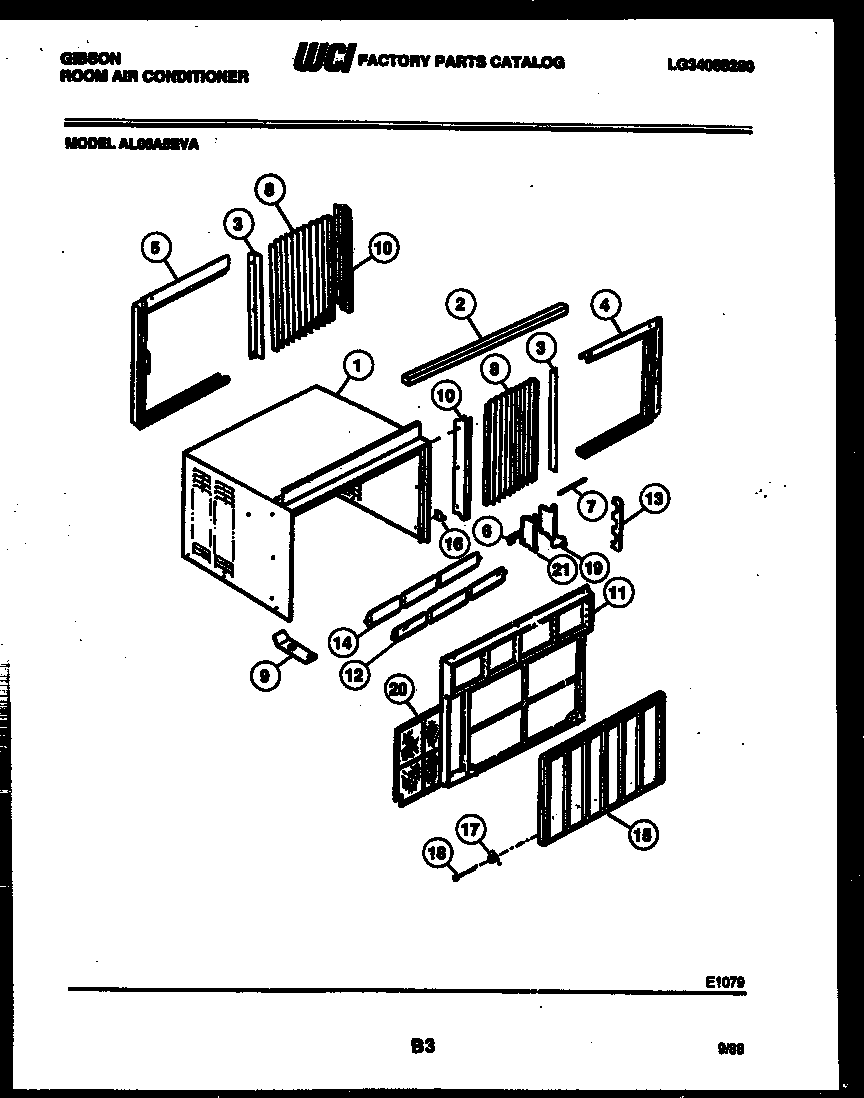

AL06A5EVA 02 – CABINET PARTS

Products

PositionProduct
*13807WCI 3201074
1WCI G147907-34
2WCI G149308-05
2AWCI G149308-06
3ANGLE-RETAINER
4WCI G145321-03
5WCI G145327-03
6WCI G111088
7WCI G146649
8PANEL-WINDOW
9BRACKET-SUPT
9AWCI G100817
9BWCI G513456
10RETAINER-PANEL
11WCI G503407-02
11AWCI G521208
12WCI G516821-04
13WCI G147029
14WCI G516822-04
15WCI G503408-07
16AWCI G100773
16BRACKET-BASE
17WCI G150130
18WCI G516976
19WCI G147031
20WCI G150129
21WCI G147030
