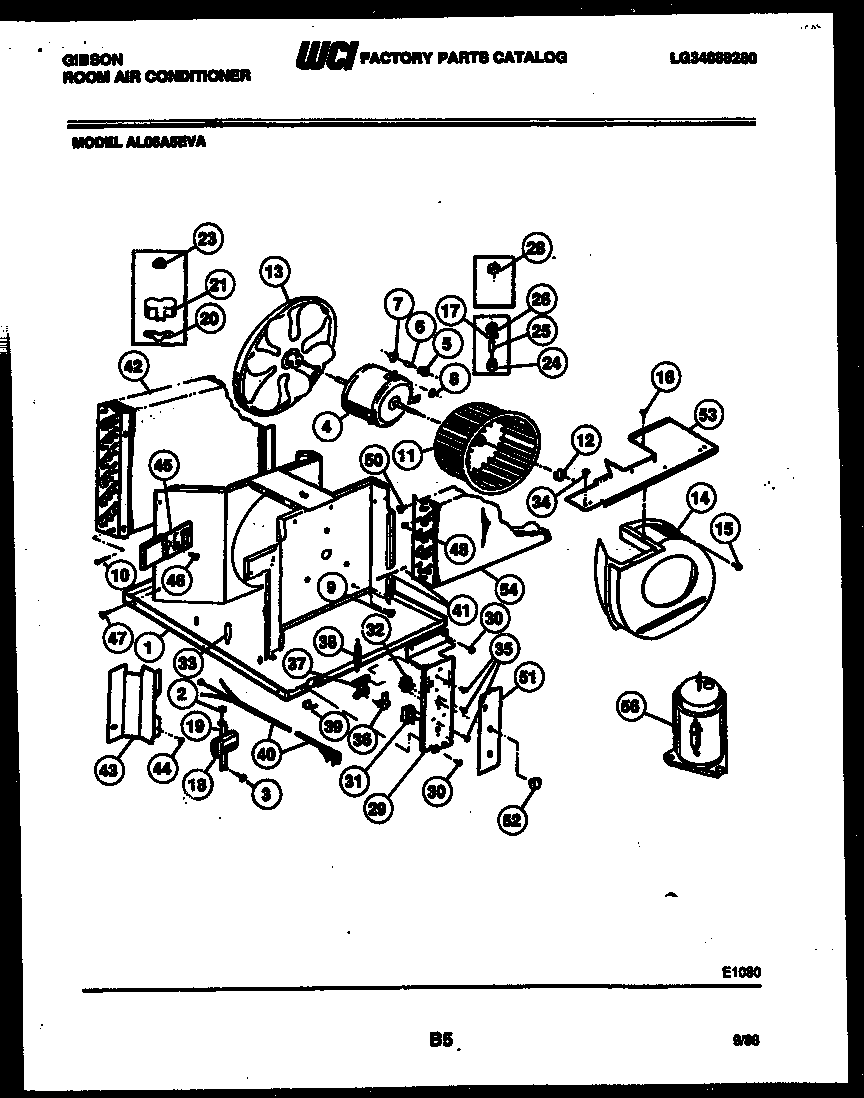

AL06A5EVA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	BASE
2	SCREW
4	MOTOR-FAN
5	GROMMET
6	SLEEVE
7	NUT
8	5300809968 Frigidaire Dishwasher P-1 Washer
9	SCRW-NO. 8 X 3/8 (4)
10	STRAINER-FILTER
11	WHEEL-BLOWER
12	RING-COMPRESSION
13	FAN SLINGER RING
14	HOUSING-BLOWER
17	SPACER – COMPRESSOR MTG. (3)
18	WCI G513068-11
19	WCI G504143
20	WCI G516949
21	COVER – TERMINAL
23	WCI G516950
24	GROMMET – COMPRESSOR (3)
25	WCI G516954
26	NUT-COMPR (3)
28	WCI G519630-08
29	WCI G520669
30	154419403 Frigidaire Dishwasher Screw
31	SWITCH-5 POS
32	WCI G520897
34	WCI G521208
35	SCRW-CNTRL (4)
36	WCI G141654
37	WCI G522568
38	WCI G149680
39	CLIP-FRONT
40	CORD-SERVICE
41	TUBE-CAPILLARY
42	WCI G511715
43	WCI G520671
45	DOOR-EXHAUST
47	WCI G519968
48	WCI G513809
50	TUBE-CONN (2)
51	WCI 3201073
52	WCI G110826
53	WCI G501351
54	WCI G522820
54A	WCI G516352
56	WCI G522690-01
