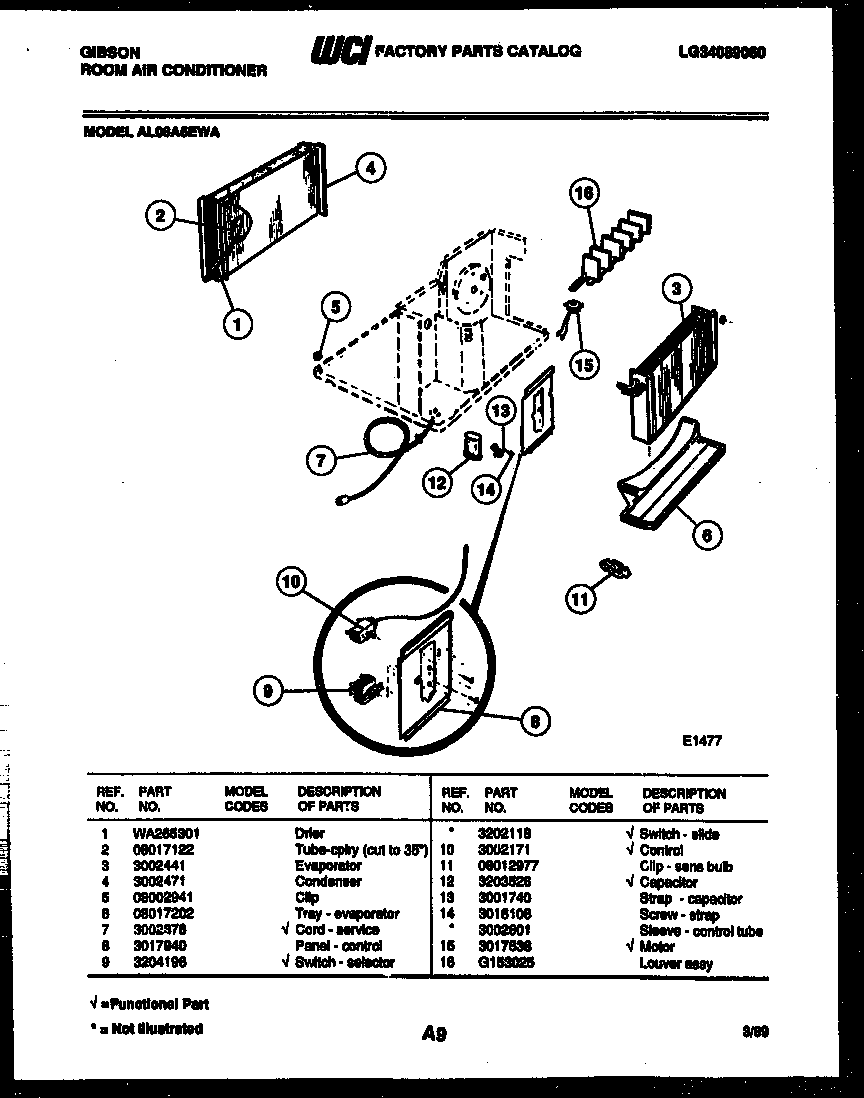

AL06A5EWA 03 – ELECTRICAL PARTS

Products

Position	Product
1	5300265301 Frigidaire Air Conditioner P1 Filter Drier
2	CAPILLARY TUBE (CUT TO 40“)
3	WCI 3002441
4	WCI 3002471
5	WCI 08002941
6	WCI 08017202
7	WCI 3002376
8	WCI 3017940
9	WCI 3204196
9A	SWITCH – SLIDE
10	CONTROL
11	CLIP-SERVICE BULB
12	CAPACITOR
13	STRAP-CAPACITOR
14	SCREW CAPACITOR
14A	SLEEVE-CAPILLARY TUBE
15	MOTOR-DRIVE
16	LOUVER AND LINK ASSY (NON-ILLUSTRATED)
