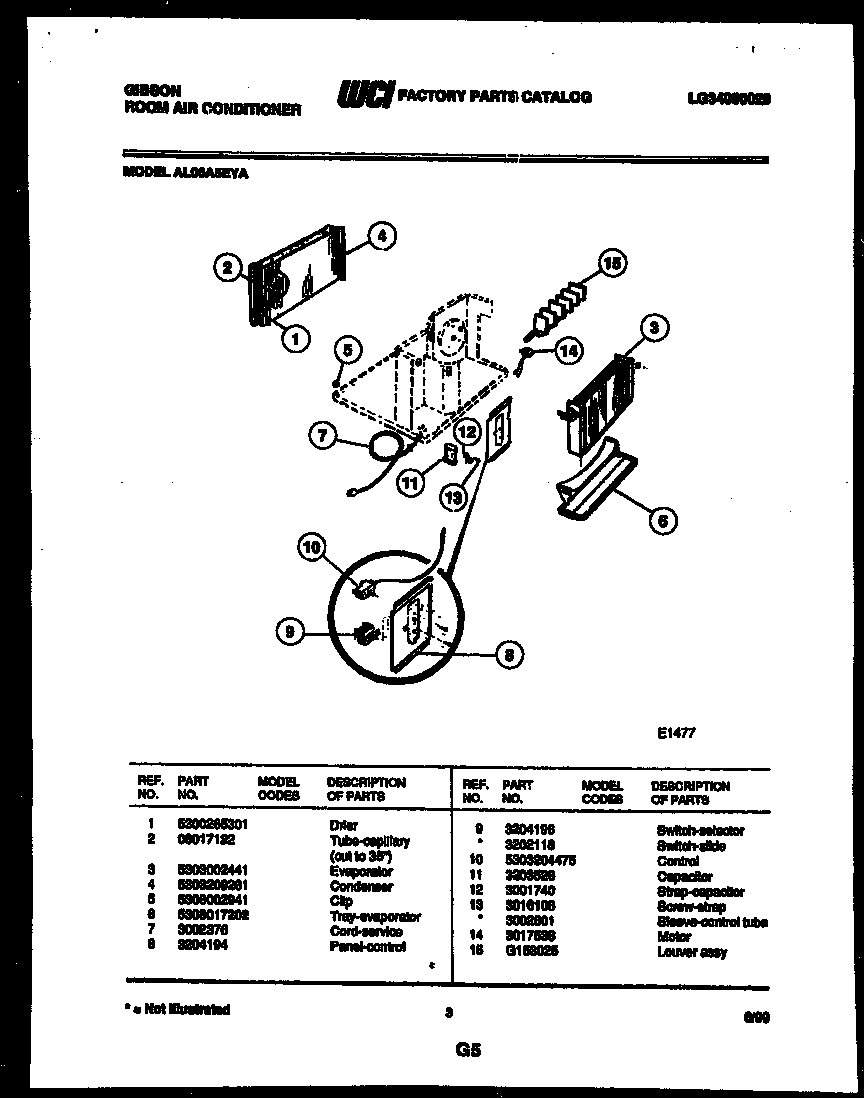

AL06A5EYA 03 – ELECTRICAL PARTS

Products

Position	Product
1	5300265301 Frigidaire Air Conditioner P1 Filter Drier
2	CAPILLARY TUBE (CUT TO 40“)
3	WCI 5303002441
4	WCI 5303209261
5	CLIP
6	TRAY-EVAPORATOR
7	WCI 3002376
8	WCI 3204194
9A	SWITCH – SLIDE
9	WCI 3204196
10	CONTROL
11	CAPACITOR
12	STRAP-CAPACITOR
13A	SLEEVE-CAPILLARY TUBE
13	SCREW CAPACITOR
14	MOTOR-DRIVE
15	LOUVER AND LINK ASSY (NON-ILLUSTRATED)
