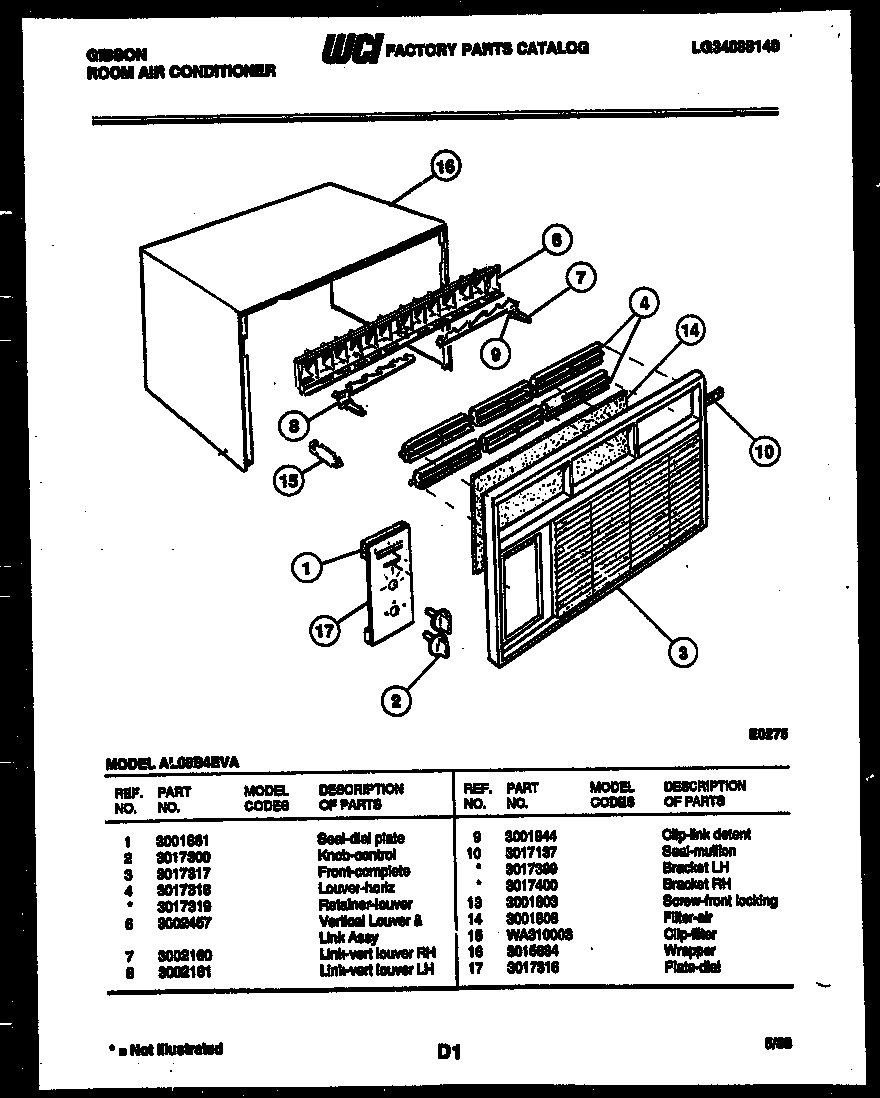

AL08B4EVA 02 – CABINET PARTS

Products

Position	Product
1	WCI 3001861
2	WCI 3017300
3	WCI 3017317
4A	RETAINER-HORIZONTAL LOUVER (NON-ILLUSTRATED)
4	WCI 3017318
6	VERTICAL LOUVER & LINK ASSY
7	LINK-VERT LOUVER RH
8	LINK-VERT LOUVER LH
9	CLIP-DETENT
10A	WCI 3017399
10B	WCI 3017400
10	WCI 3017137
13	WCI 3001803
14	WCI 3001808
15	CLIP-RETAINER
16	WRAPPER
17	WCI 3017316
