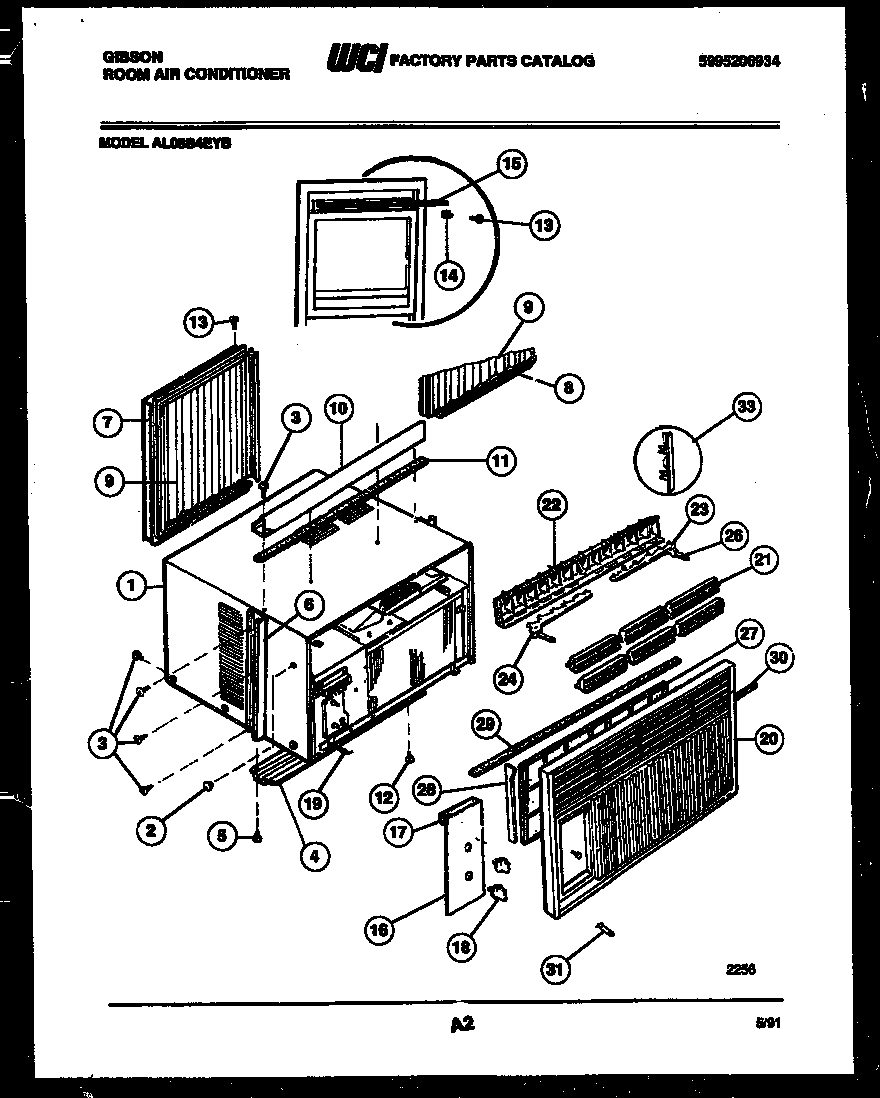

AL08B4EYB 02 – CABINET PARTS

Products

Position	Product
1A	NUT - FRONT LOCK
1	WCI 5303270060
2	WCI 08016091
3	134178901 Frigidaire Screw
4	WCI 5303270072
5	SCREW
6	WCI 5303270073
7	WCI 5303270061
8	WCI 5303270062
9	WCI 5303270075
10	WCI 5303270064
11	WCI 08016226
12	WCI 08016080
13	WCI 5308002974
14	BRACKET
15	5304407729 Frigidaire Air Conditioner Seal
16	WCI 3017316
17	SEAL-DIAL PLATE
18	WCI 5303017300
19A	WCI 5303209262
19	SERVICE CORD
20	WCI 5303273249
21	WCI 3017318
22	VERTICAL LOUVER & LINK ASSY
23	LINK-VERTICAL LOUVER RH
24A	CLIP-FILTER & SENSING BULB
24	LINK VERTICAL LOUVER LH
26	WCI 5303001844
27	FILTER-AIR
28	RAIL-FILTER RH (NON-ILLUSTRATED)
28	RAIL FILTER LH
29	SEAL TOP FRAME
30	WCI 3017137
31	SPRING CLIP-FRONT
31A	SCREW
33	RETAINER-LOUVER HORIZONTAL
