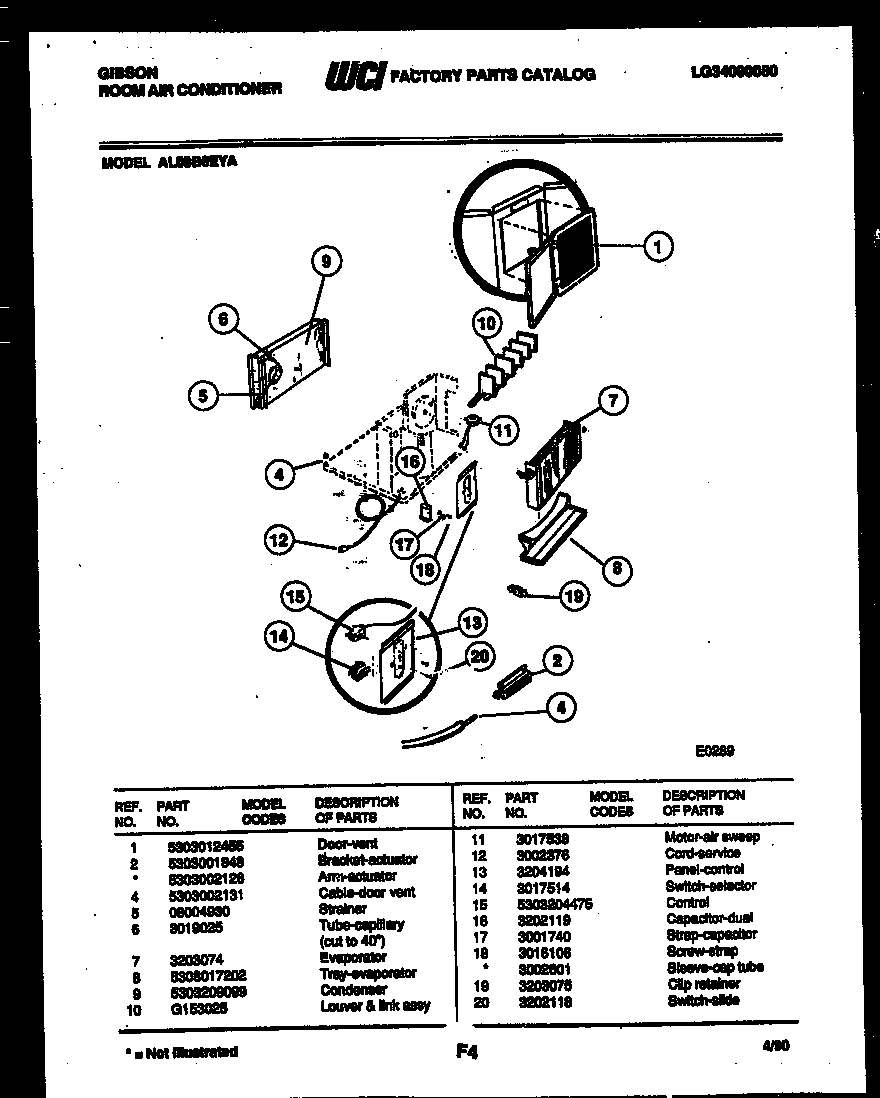

AL08B6EYA 03 – ELECTRICAL PARTS

Products

Position	Product
1	WCI 5303012455
2A	ARM-ACTUATOR (NON-ILLUSTRATED)
2	BRACKET-ACTUATOR
4	CABLE-DOOR VENT
5	5300265301 Frigidaire Air Conditioner P1 Filter Drier
6	WCI 3019025
7	WCI 3203074
8	TRAY-EVAPORATOR
9	WCI 5303209099
10	LOUVER AND LINK ASSY (NON-ILLUSTRATED)
11	MOTOR-DRIVE
12	WCI 3002376
13	WCI 3204194
14	SWITCH-SELECTOR
15	CONTROL
16	CAPACITOR-DUAL
17	STRAP-CAPACITOR
18	SCREW CAPACITOR
18A	SLEEVE-CAPILLARY TUBE
19	CLIP-FILTER & SENSING BULB
20	SWITCH – SLIDE
