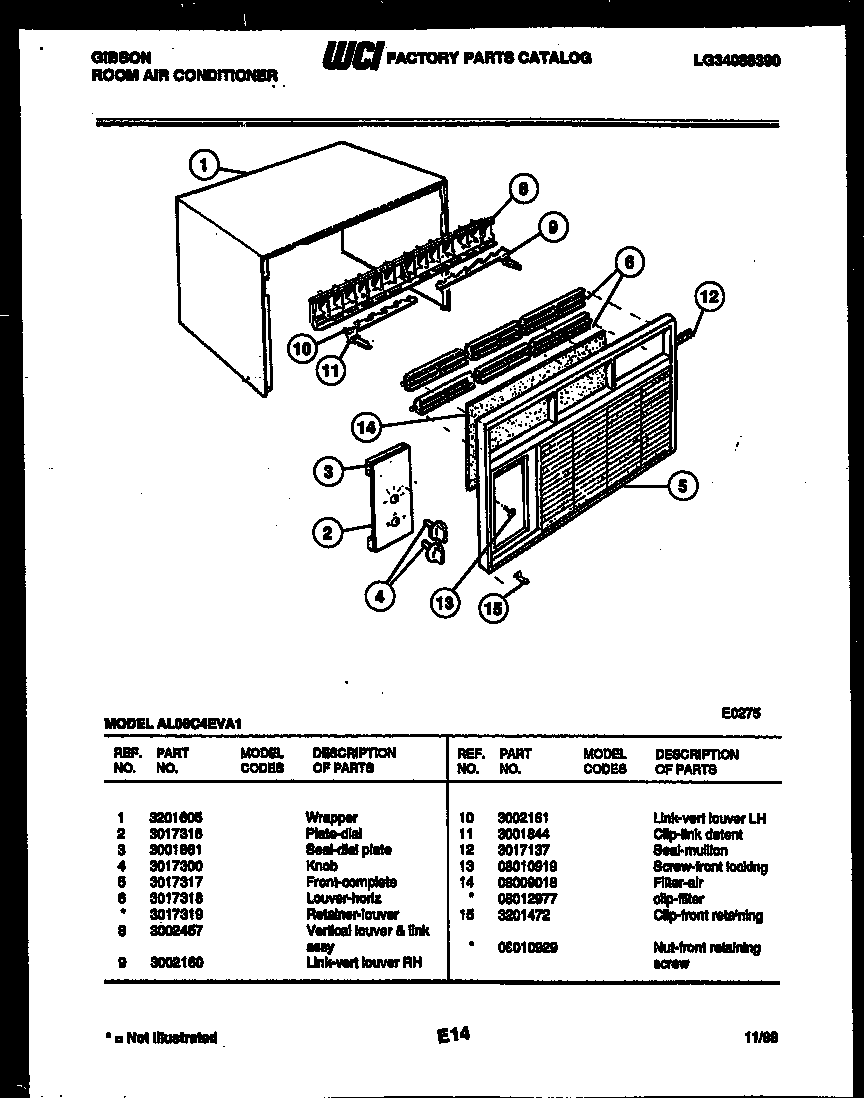

AL08C4EVA1 02 – CABINET PARTS

Products

Position	Product
*13399	NUT-FRONT RETAINING SCREW
1	WCI 3201605
2	WCI 3017316
3	WCI 3001861
4	WCI 3017300
5	WCI 3017317
6	WCI 3017318
6A	RETAINER-HORIZONTAL LOUVER (NON-ILLUSTRATED)
8	VERTICAL LOUVER & LINK ASSY
9	LINK-VERT LOUVER RH
10	LINK-VERT LOUVER LH
11	CLIP-DETENT
12	WCI 3017137
13	SCREW FRONT PANEL (NON-ILLUSTRATED)
14	FILTER-AIR
14A	CLIP-SERVICE BULB
15	SPRING CLIP-FRONT
