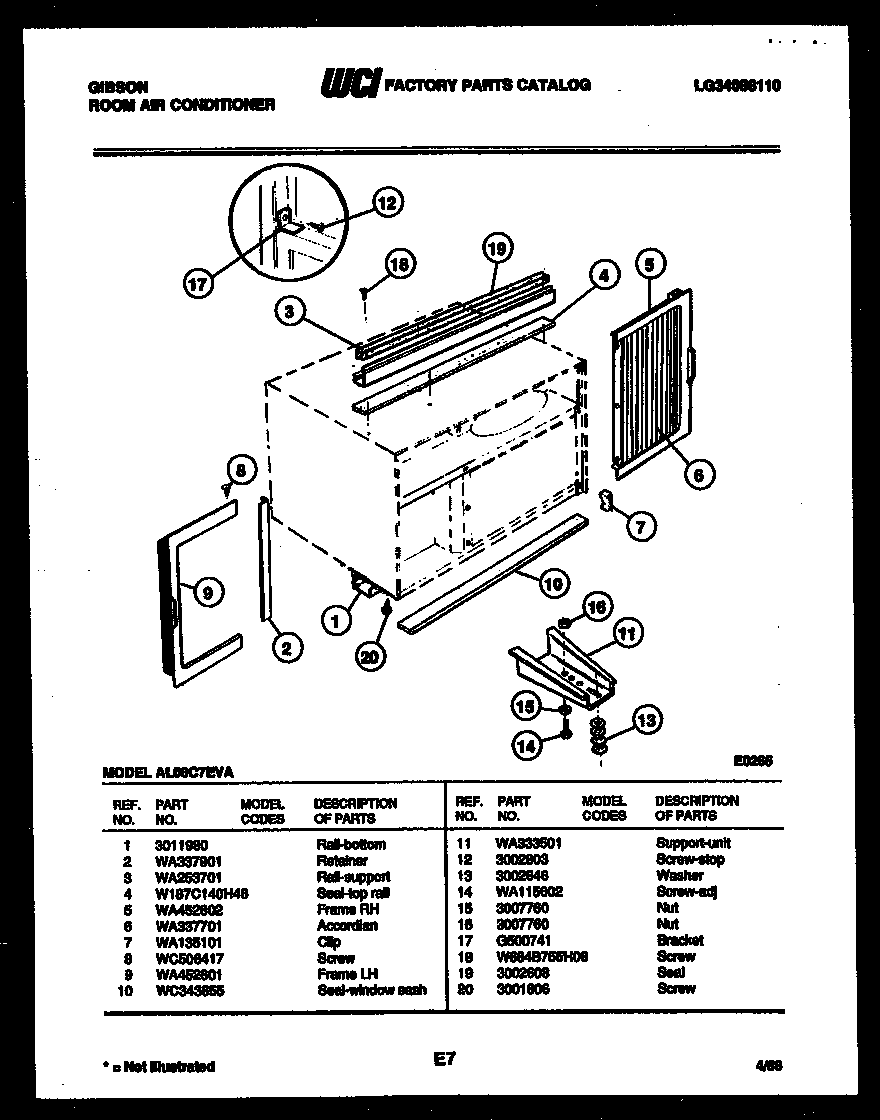

AL08C7EVA 06 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
1	RAIL-BOTTOM
2	RETAINER-ACCORDIAN
3	WCI WA253701
4	WCI W187C140H46
5	WCI WA452602
6	WCI WA337701
7	CLIP-RETAINER
8	SCREW-ADJUSTMENT
9	WCI WA452601
10	5304407729 Frigidaire Air Conditioner Seal
11	WCI WA333501
12	SCREW-WOOD
13	WASHER SPACER
14	SCREW-LEVELING
16	WCI 3007760
17	BRACKET-BASE
18	WCI W684B755H08
19	SEAL – WINDOW
20	SCREW
