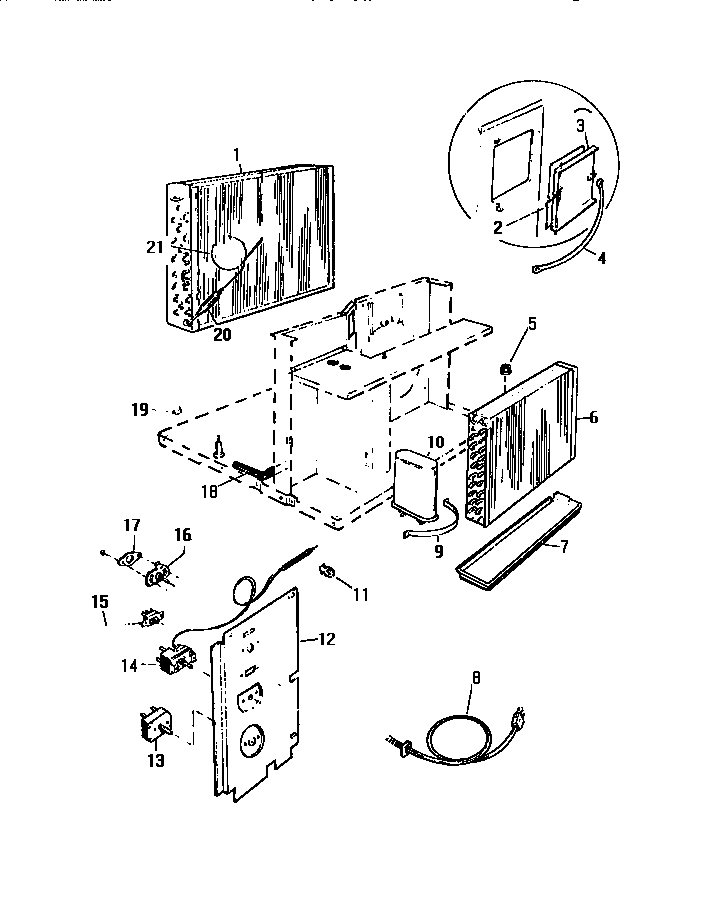

AL097H1A1 03 – CONTROLS – Aparts

AL097H1A1 03 – CONTROLS

Products

Position	Product
1	WCI A421308
2	SPRING, VENT DOOR
3	WCI 2627D77H01
4	CABLE, VENT
5	WCI 846A623H03
6	WCI A409702
7	TRAY EVAP.
8	WCI A435017
9	STRAP
10	CAPACITOR-DUAL
11	WCI A310003
12	WCI A424018
13	WCI A292503
14	WCI A332503
15	WCI A333604
16	DETENT, BASE
17	SPRING, DETENT
18	HOSE, DRAIN
19	WCI C313218
20	WCI A265301
21	TUBE CAPILLARY CUT TO 35``
