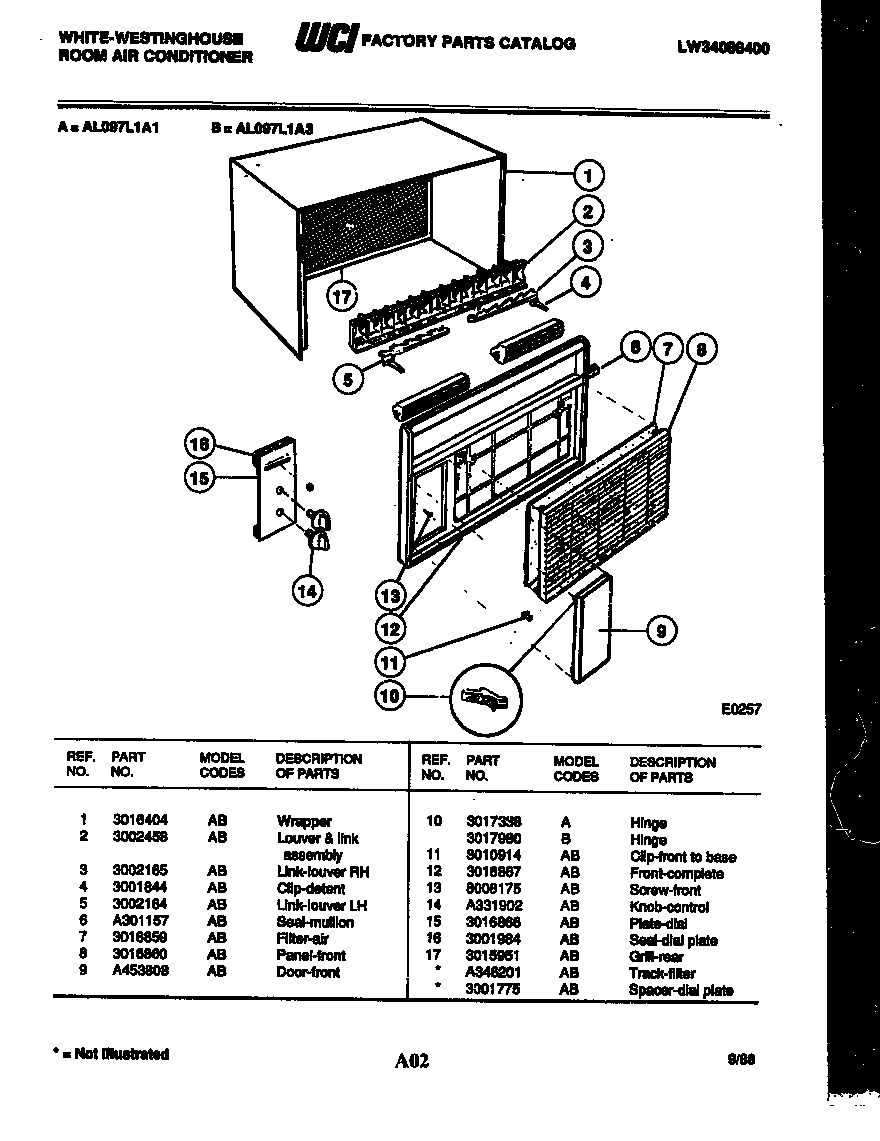

AL097L1A1 02 – CABINET PARTS

Written by

Products

Position	Product
*14325	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
*14325	WCI A346201
1	WRAPPER
2	VERT LOUVER AND LINK ASSY
3	LINK- VERT LOUVER LH
4	CLIP-DETENT
5	LINK-VERT LOUVER RH
6	WCI A301157
7	WCI 3016859
8	WCI 3016860
9	WCI A453808
10	WCI 3017338
11	CLIP-FRONT TO BASE
12	WCI 3016867
13	SCREW-FRONT
14	KNOB
15	WCI 3016866
16	SEAL-DIAL PLATE
17	GRILL-REAR
