AL099J1A2 05 – CONTROL PARTS

AL099J1A2 05 – CONTROL PARTS

Written by

in

AL099J1A2 05 – CONTROL PARTS

Products

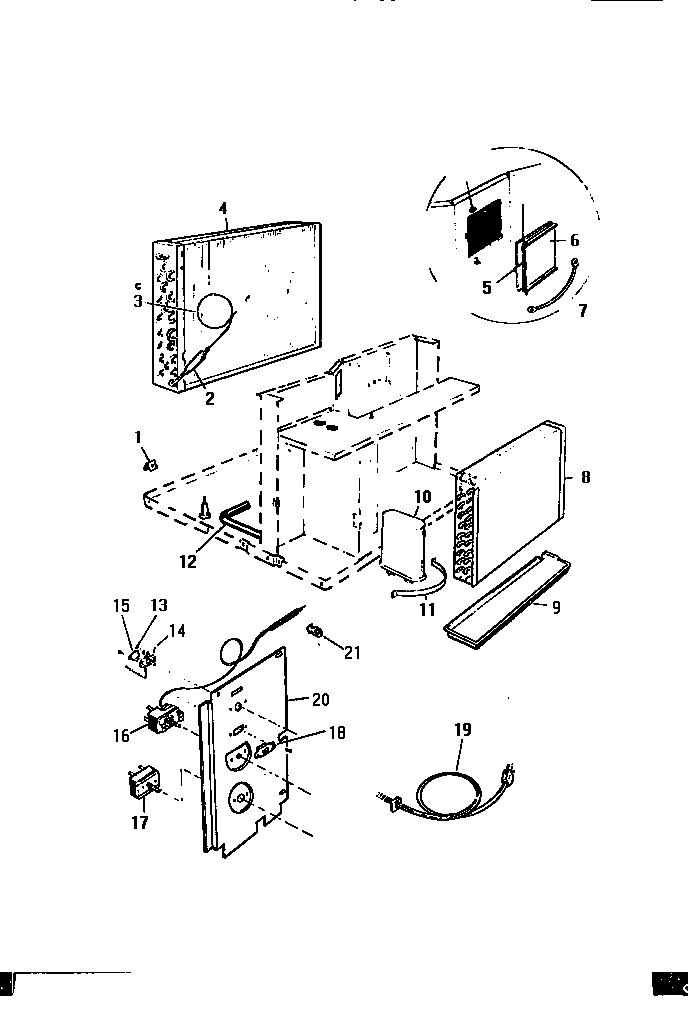

PositionProduct
1WCI C133218
2WCI A265301
3TUBE CAPILLARY CUT TO 35“
4WCI A407601
5SPRING, VENT DOOR
6WCI 2627D77H02
7CABLE-VENT DOOR
8WCI A409707
9TRAY EVAP.
10WCI 187C527H43
11STRAP
12HOSE, DRAIN
13CLIP RET CABLE DETENT
14WCI A333708
15SPRING, DETENT
16WCI A332503
17WCI A265914
18WCI A333604
19WCI A435017
20WCI A424018
21WCI A310003
