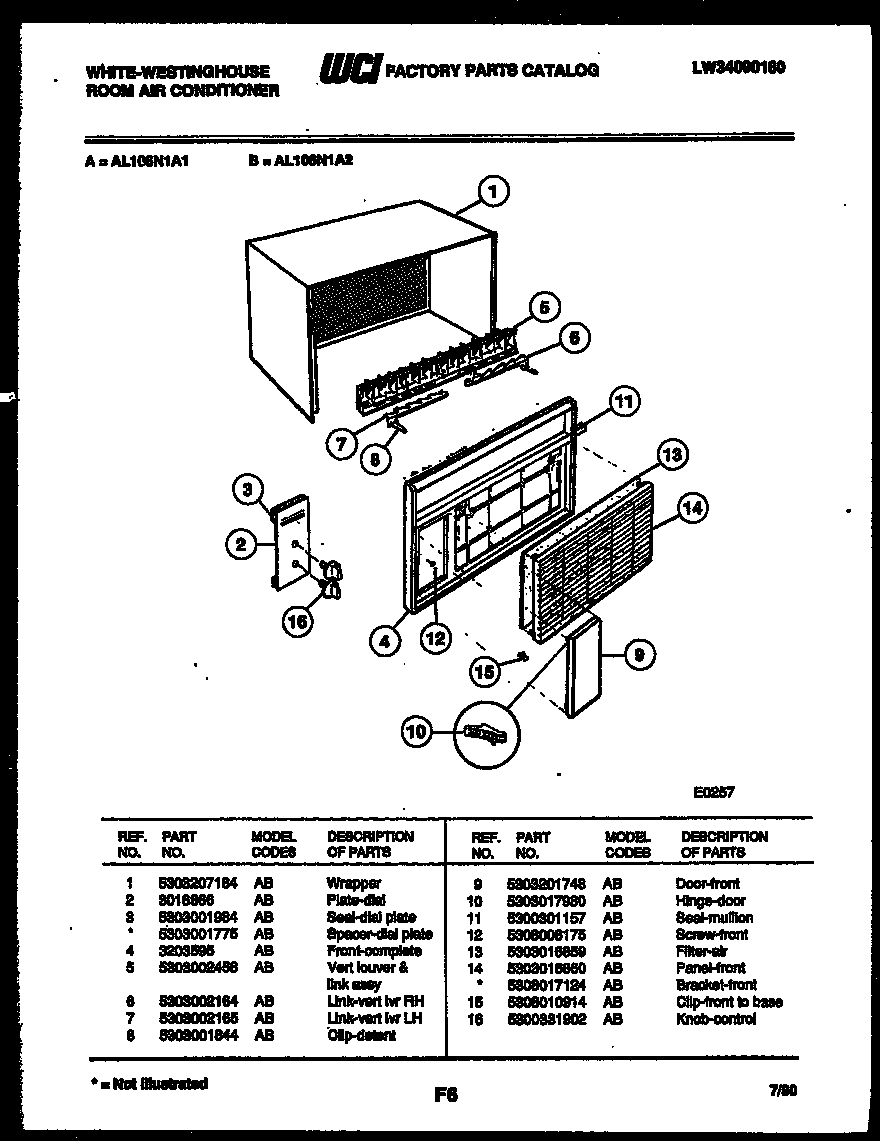

AL106N1A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303207184
2	WCI 3016866
3	WCI 5303001984
3A	WCI 5303001775
4	WCI 3203595
5	VERT. LOUVER & LINK ASSY.
6	LINK – VERT LOUVER RH
7	LINK VERTICAL LOUVER LH
8	WCI 5303001844
9	WCI 5303201748
10	HINGE – DOOR
11	WCI 5300301157
12	SCREW-FRONT
13	WCI 5303016859
14	PANEL-FRONT
14A	BRACKET-FRONT (NON-ILLUSTRATED)
15	CLIP-FRONT TO BASE
16	WCI 5300331902
