AL119J1A1 03 – CABINET, FRONT, WRAPPER

AL119J1A1 03 – CABINET, FRONT, WRAPPER

Written by

in

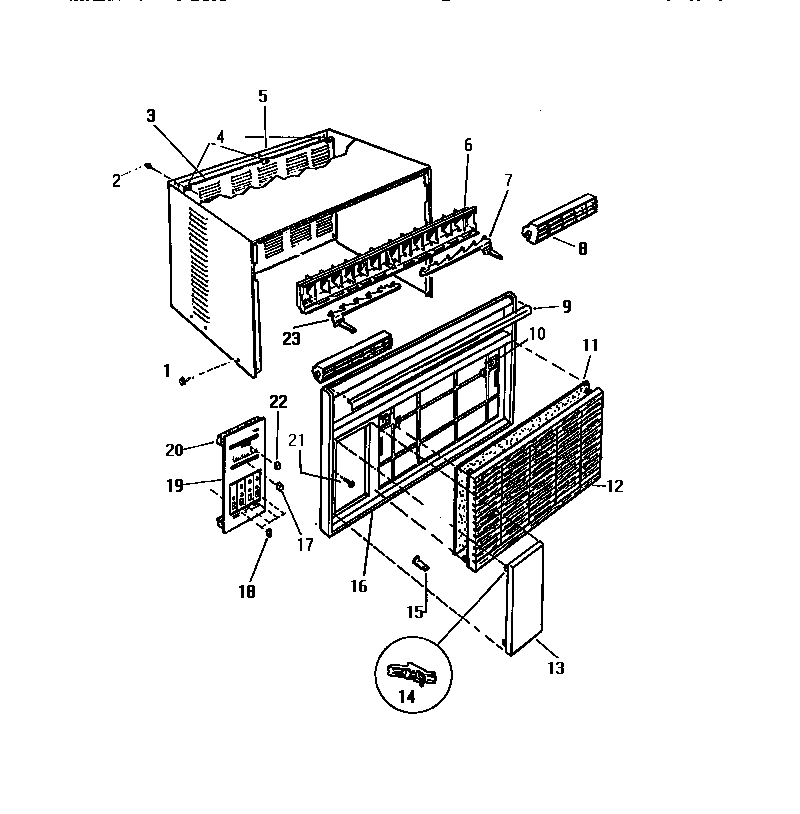

AL119J1A1 03 – CABINET, FRONT, WRAPPER

Products

Position	Product
1	WCI A124506
2	WCI A124505
3	PANEL-REAR W/ RIBS
4	SPEED NUTS
5	WCI A300108
6	WCI A467002
7	LINK-LOUVER-RH
8	FRAME-LOUVERS
9	WCI A344902
10	CLIP
11	FILTER
12	PANEL-FRONT
13	WCI A453805
14	WCI A344501
15	WCI A121403
16	WCI A462701
18	WCI A351402
19	PLATE DIAL
20	WCI A141001
21	SCREW
22	WCI A351302
23	LINK-LOUVER-L.H.
