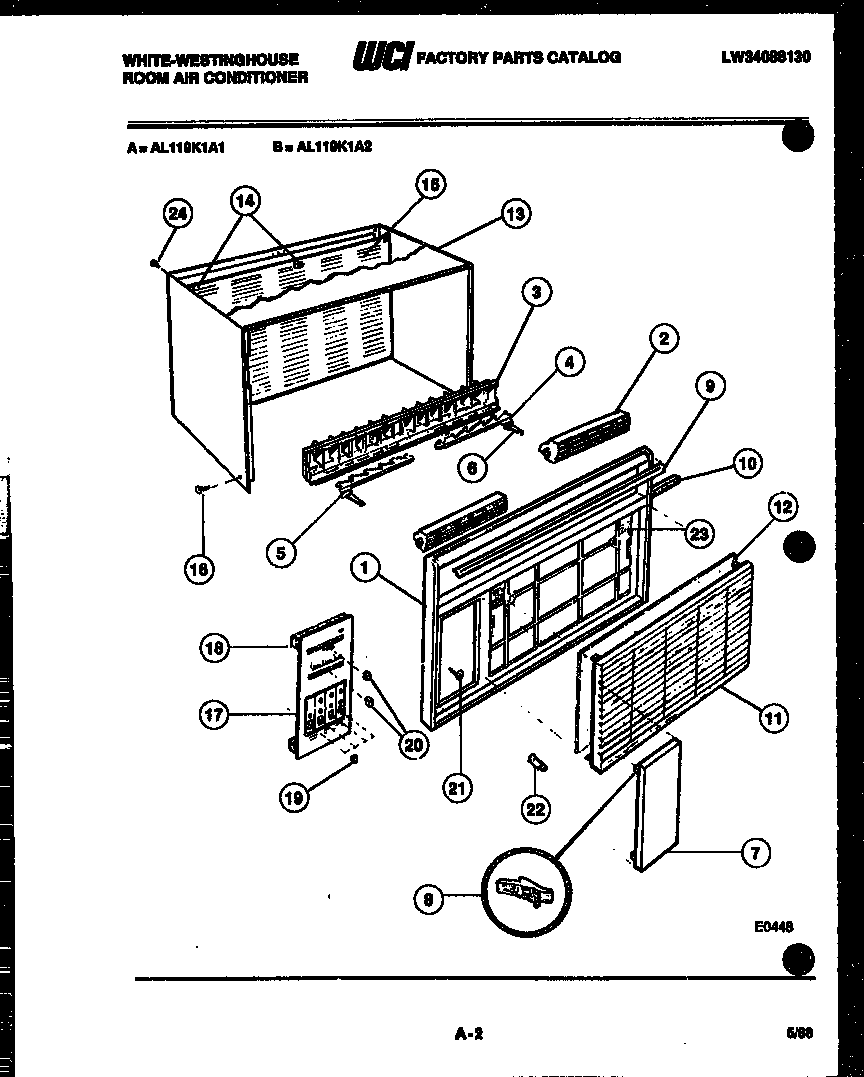

AL119K1A1 02 – CABINET PARTS

AL119K1A1 02 – CABINET PARTS

Written by

in

AL119K1A1 02 – CABINET PARTS

Products

PositionProduct
*87632WCI A346201
1WCI A462706
2FRAME-LOUVERS
3WCI A467002
4LINK-VERTICAL LOUVER RH
5LINK-LOUVER-L.H.
6CLIP-LINK (NON-ILLUSTRATED)
7WCI A453805
8WCI A344501
9WCI A344902
10WCI A301157
11WCI A454703
12FILTER-AIR FRAMED
13WCI A300108
14SPEED NUTS
15PANEL-REAR W/ RIBS
17ESCUTCHEON-PLATE DIAL
18WCI A141001
19WCI A351402
20WCI A351302
20KNOB-PUSH BUTTON FILTER
21SCREW
22WCI A121403
23CLIP
24WCI A124506
