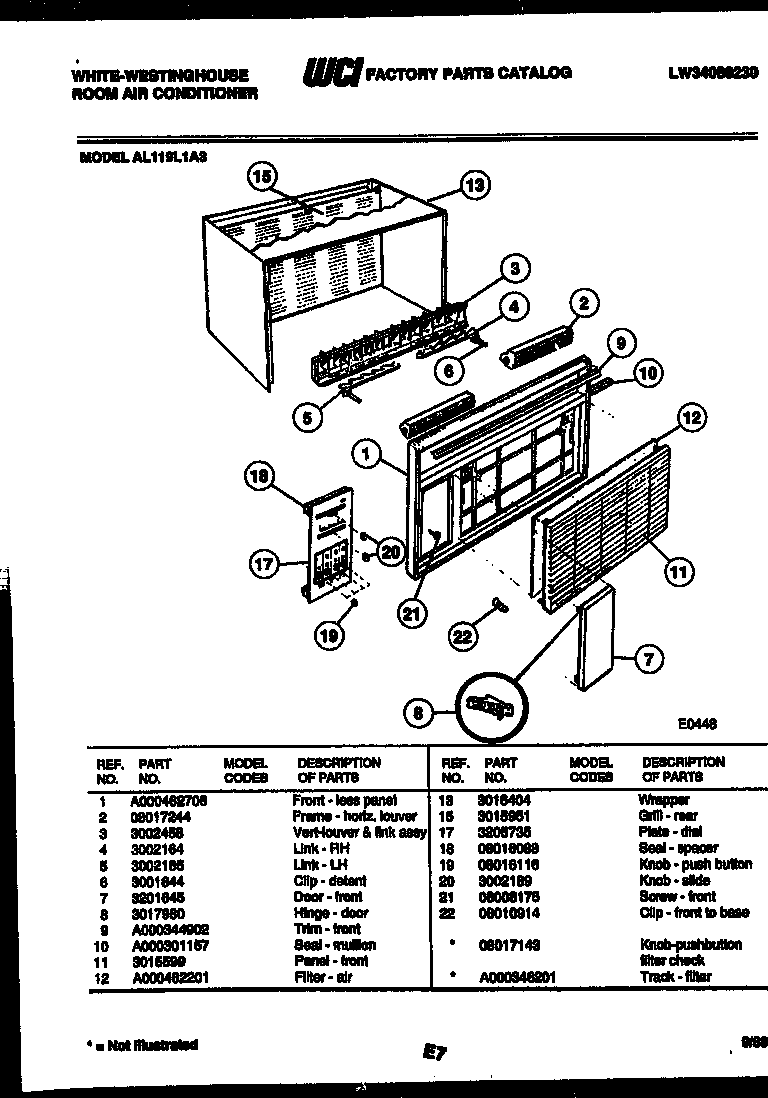

AL119L1A3 02 – CABINET PARTS

AL119L1A3 02 – CABINET PARTS

Written by

in

AL119L1A3 02 – CABINET PARTS

Products

Position	Product
*22555	WCI 08017143
*22555	WCI A000346201
1	WCI A000462706
2	FRAME-LOUVERS
3	VERT LOUVER AND LINK ASSY
4	LINK-VERT LOUVER RH
5	LINK- VERT LOUVER LH
6	CLIP-DETENT
7	WCI 3201645
8	WCI 3017980
9	WCI A000344902
10	WCI A000301157
11	WCI 3015599
12	WCI A000462201
13	WRAPPER
15	GRILL-REAR
17	ESCUTCHEON-PLATE DIAL
18	SEAL – DIAL PLATE
19	WCI 08016116
20	WCI 3002189
21	SCREW-FRONT
22	CLIP-FRONT TO BASE
