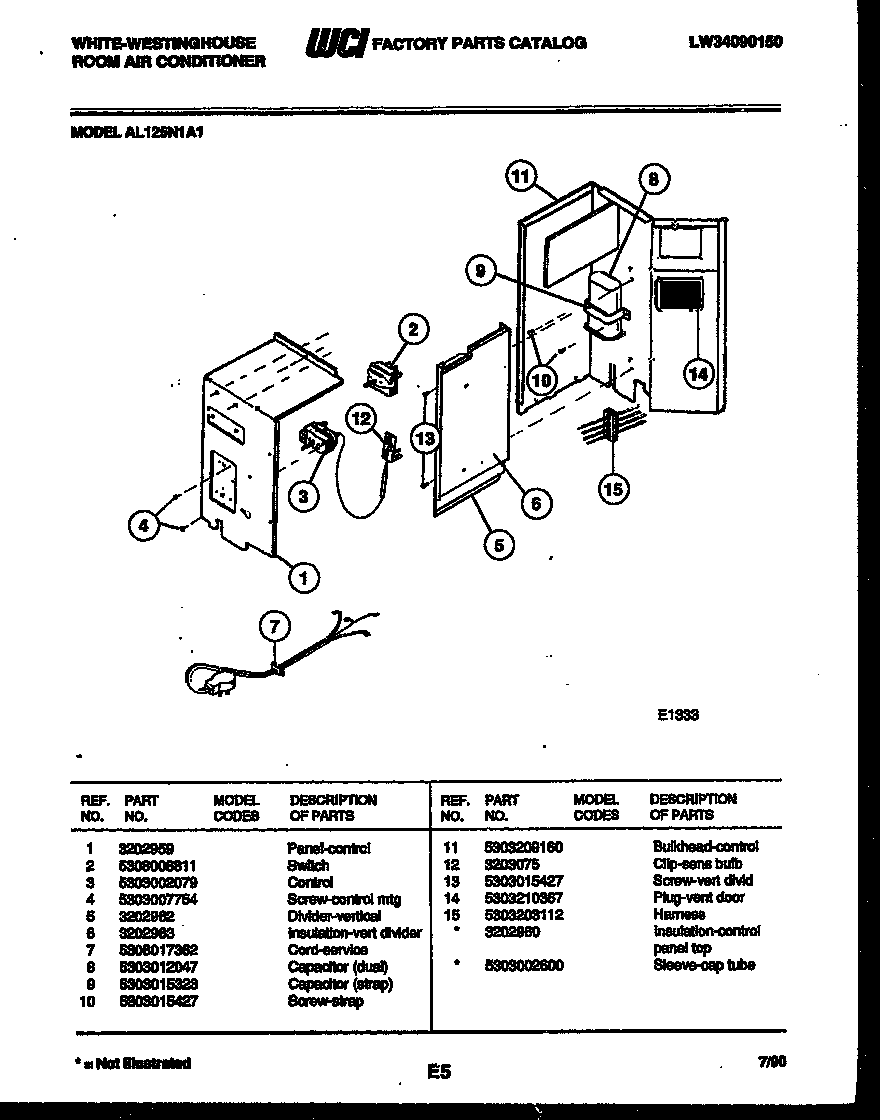

AL125N1A1 03 – ELECTRICAL PARTS

Written by

Products

Position	Product
*33797	INSULATION-CONTROL PANEL TOP
*33797	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
1	WCI 3202959
2	SWITCH
3	CONTROL
4	SCREW
5	DIVIDER
6	WCI 3202963
7	CORD-SERVICE
8	WCI 5303012047
9	STRAP
11	BULKHEAD CNTRL AREA
12	CLIP-FILTER & SENSING BULB
13	134178901 Frigidaire Screw
14	WCI 5303210367
15	HARNESS
