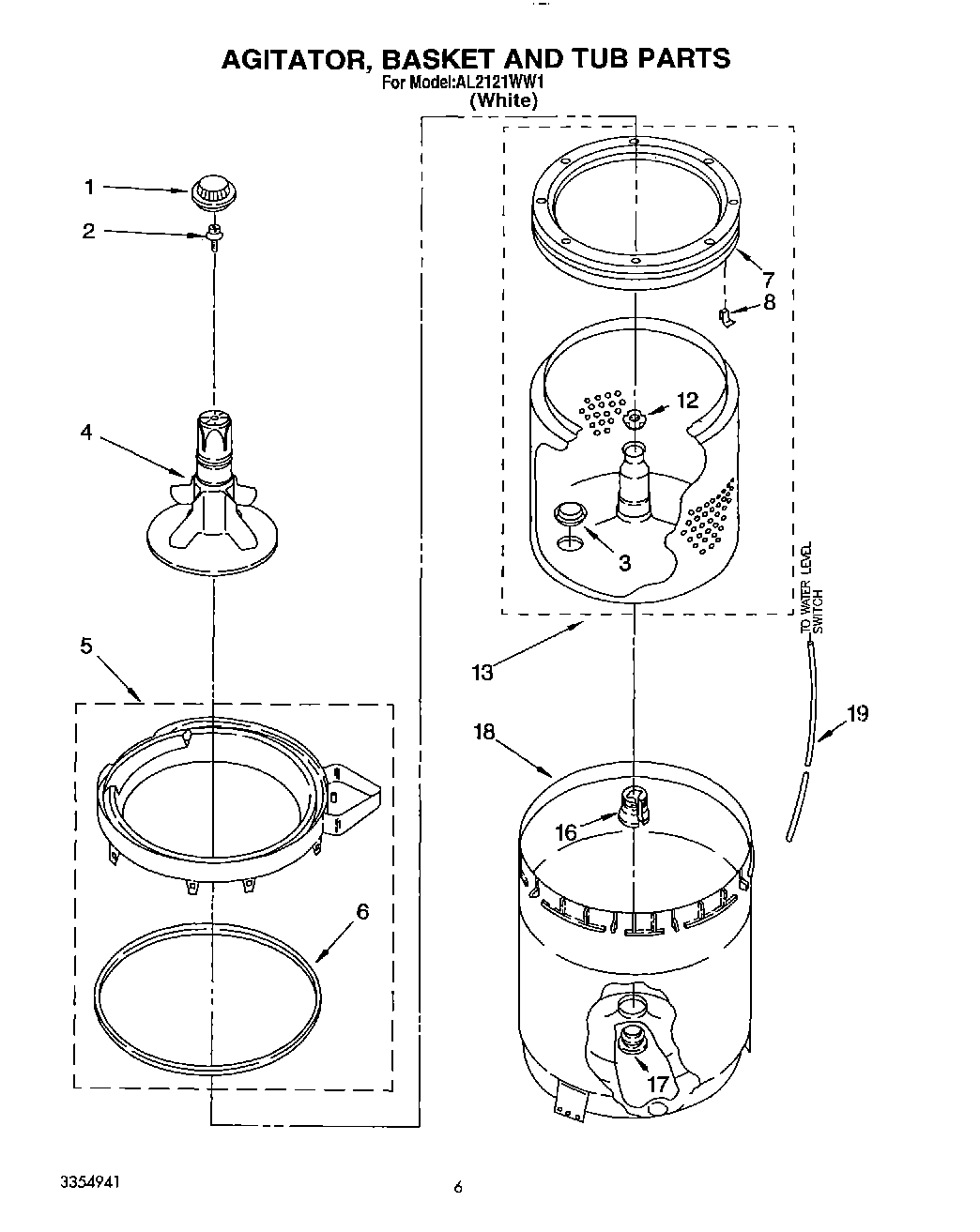

AL2121WW1 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3Snap-In-Plugs (4)
4Agitator
5Tub Ring & Gasket
6WP3359586 Whirlpool Tub Seal
8WP8519815 Whirlpool Washer Balance Ring Clip
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring Assembly
16WP389140 Whirlpool Drive Block or Bell
17W10814296 Whirlpool Washer Center Post Seal Gasket
18Tub
19WP353244 Whirlpool Hose
