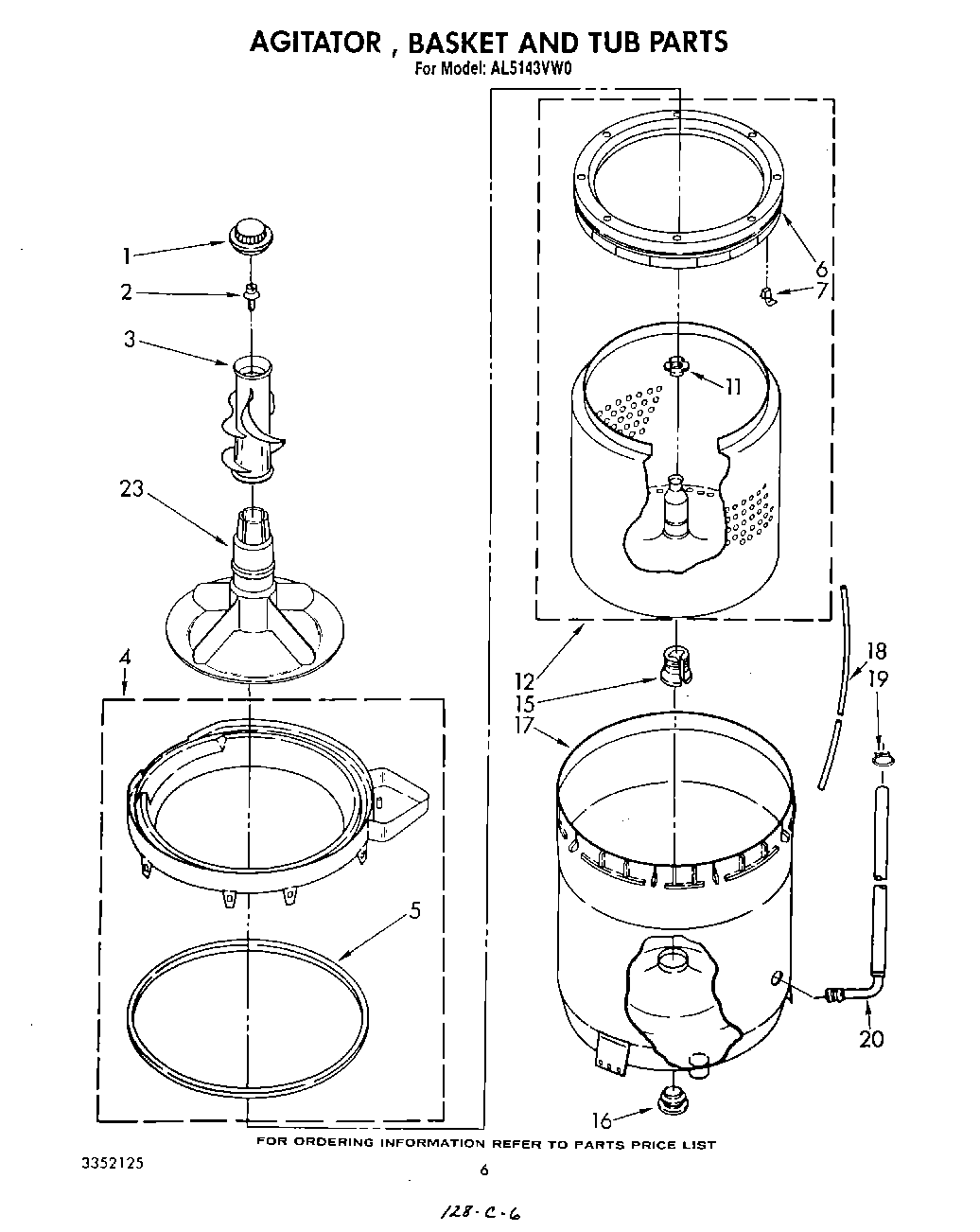

AL5143VG0 04 – AGITATOR, BASKET AND TUB

AL5143VG0 04 – AGITATOR, BASKET AND TUB

Written by

in

AL5143VG0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63753 Whirlpool Filter
4Tub Ring & Gasket
5WP3359586 Whirlpool Tub Seal
6WP8519815 Whirlpool Washer Balance Ring Clip
7WP3956205 Whirlpool Balance Ring
11WP21366 Whirlpool Spanner Nut
12Basket & Balance Ring
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17Tub
18WP353244 Whirlpool Hose
19WP596669 Whirlpool Hose Clamp
20Hose, Bleach
23387838 Whirlpool Washer Agitator with Auger Assembly
