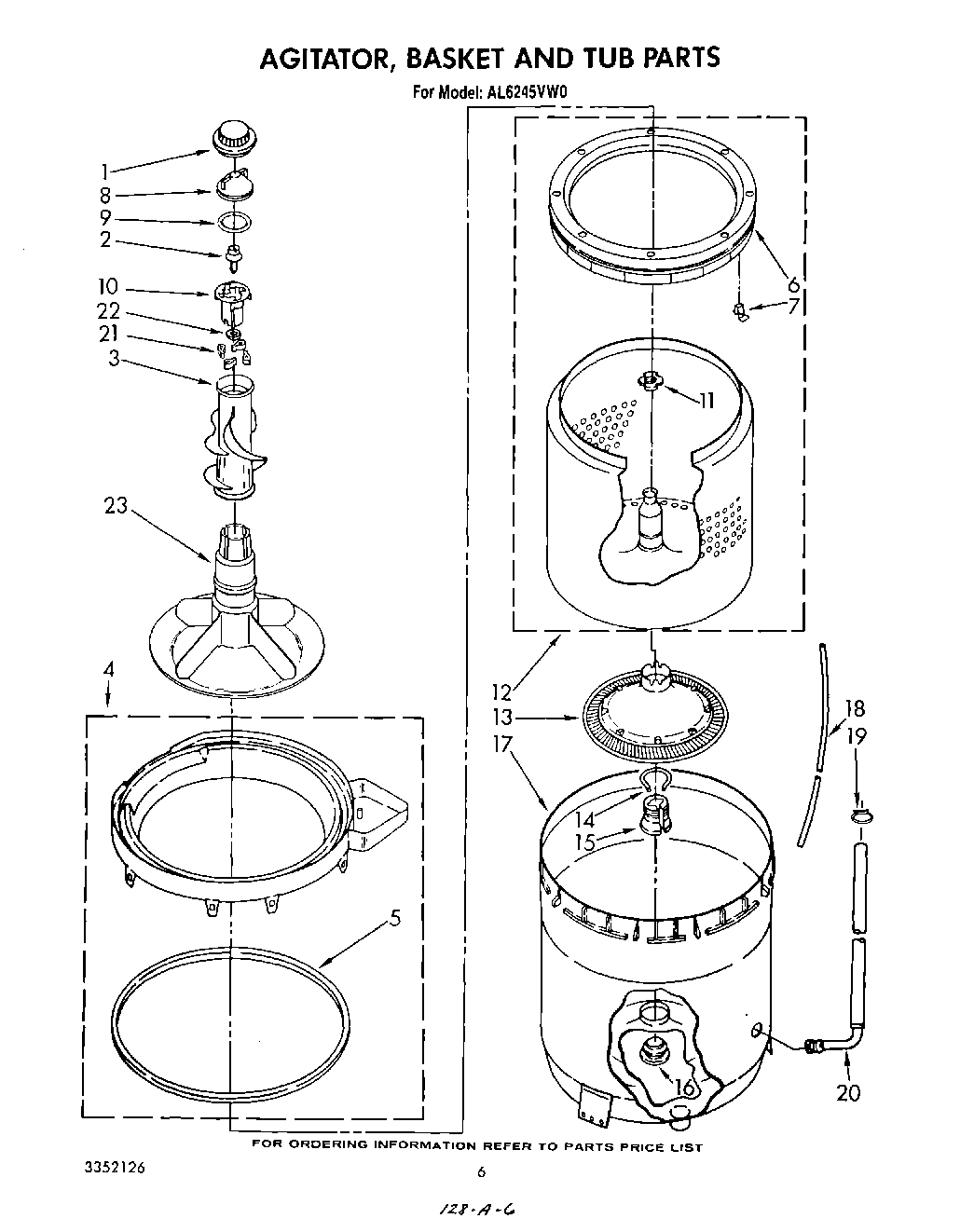

AL6245VG0 04 – AGITATOR, BASKET AND TUB

AL6245VG0 04 – AGITATOR, BASKET AND TUB

Written by

in

AL6245VG0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3349019 Whirlpool Upper Agitator
4Tub Ring & Gasket
5WP3359586 Whirlpool Tub Seal
6WP8519815 Whirlpool Washer Balance Ring Clip
7WP3956205 Whirlpool Balance Ring
8WPW10074580 Whirlpool Agitator Inner Cap and Seal
9WPW10072840 Whirlpool Seal Assembly
10285811 Whirlpool Washer Agitator Repair Kit
11WP21366 Whirlpool Spanner Nut
12Basket & Balance Ring
13285868 Whirlpool Washer Filter Plug Kit
14Lock, Filter
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17Tub
18WP353244 Whirlpool Hose
19WP596669 Whirlpool Hose Clamp
20Hose, Bleach
2180040 Whirlpool Washer Agitator Dog Kit
22Seal, Agitator
23WP3350830 Whirlpool Agitator Assembly
