AL6245VW0 08 – WIRING HARNESS

AL6245VW0 08 – WIRING HARNESS

Written by

in

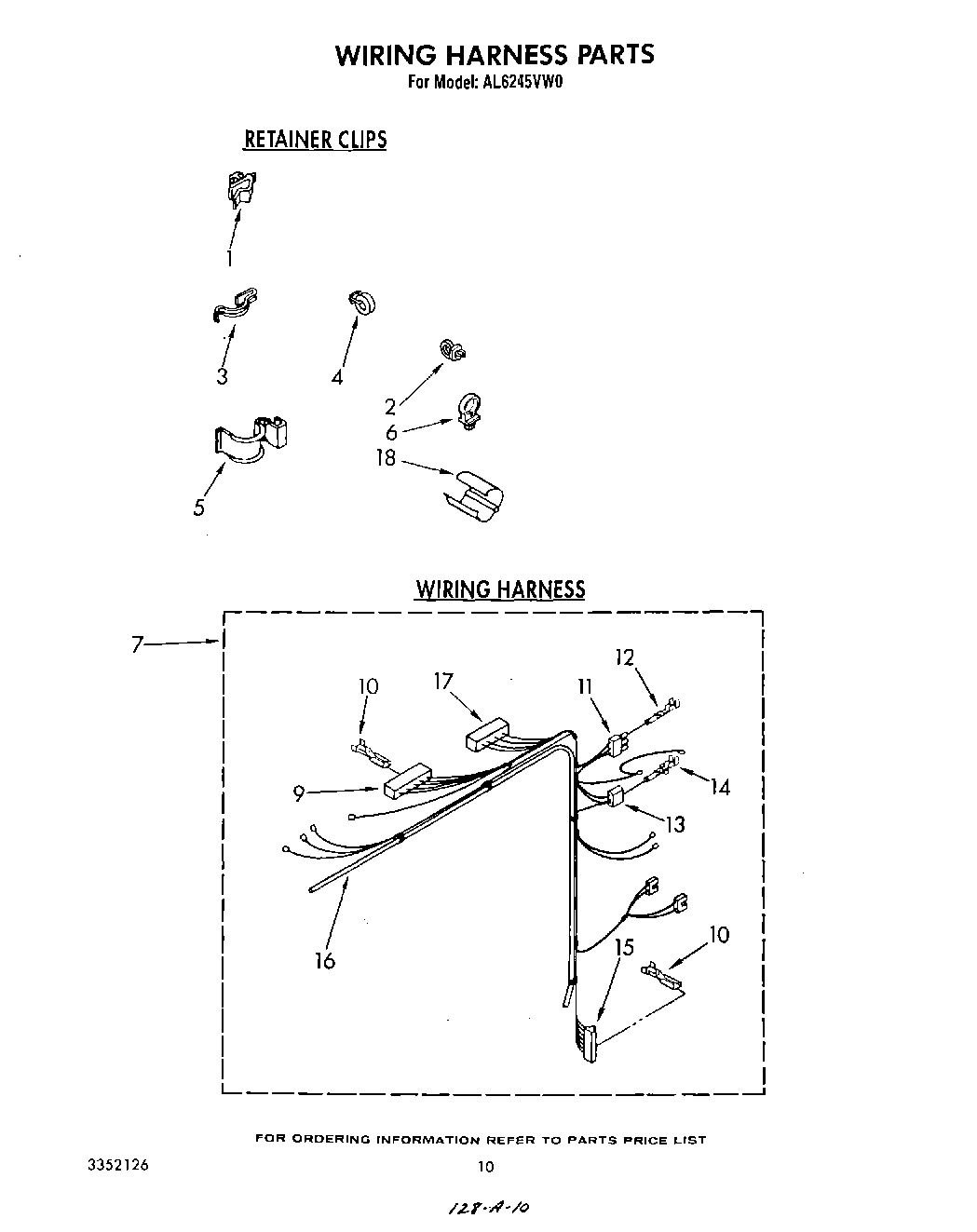

AL6245VW0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Clip, Harness
7Wiring Harness & Pressure Switch Hose
9W10876590 Whirlpool Connector
10Terminal, Female
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
16WP353244 Whirlpool Hose
17Block, Disconnect
18Protector, Harness
