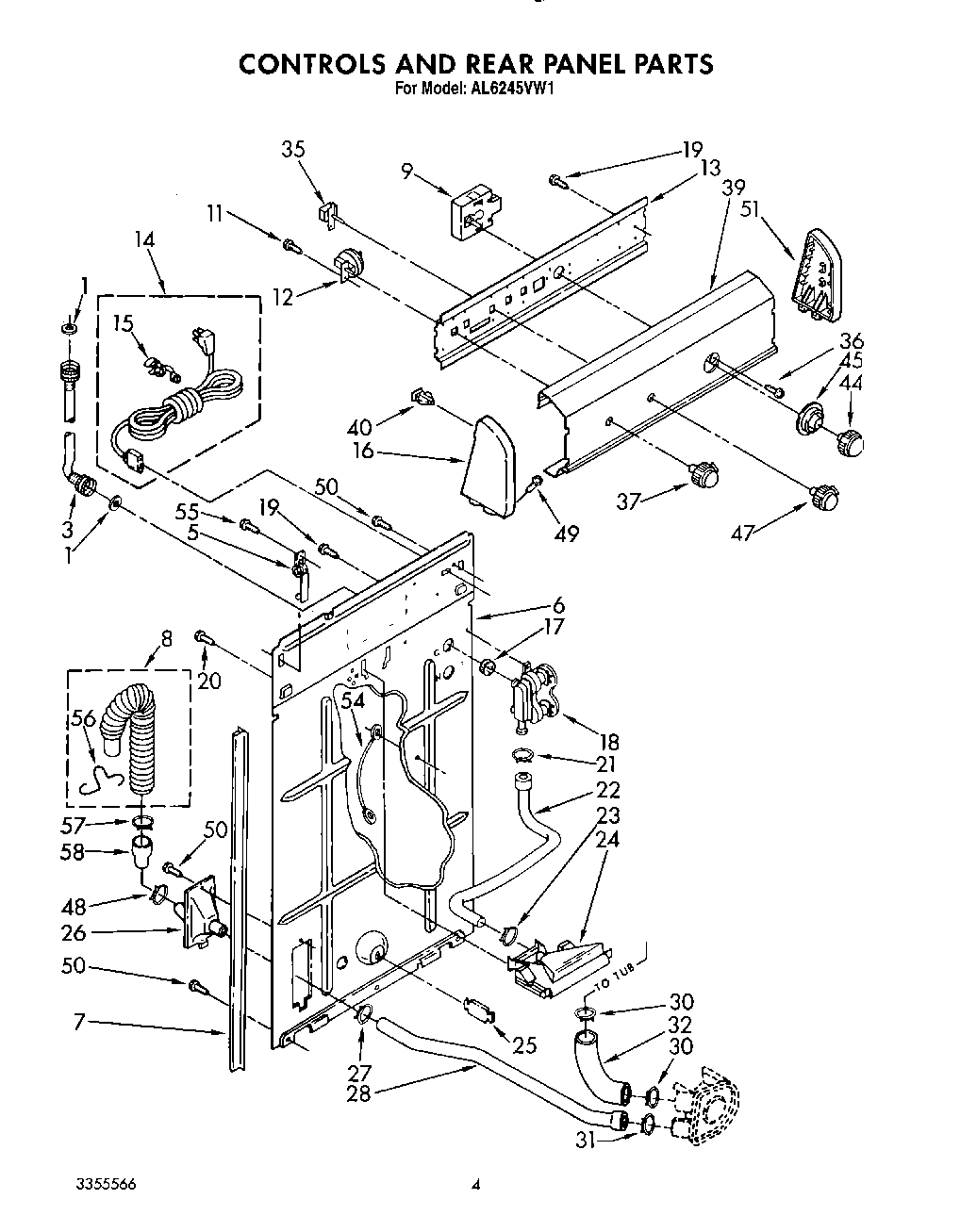

AL6245VW1 03 – CONTROLS AND REAR PANEL
Written by
in
AL6245VW1 03 – CONTROLS AND REAR PANEL
Products
Position
Product
1
WP16123 Whirlpool Washer
3
WP89503 Whirlpool Washer Fill Hose
5
Hinge, Console (2)
6
Panel, Rear
7
WP62747 Whirlpool Pad
8
285666 Whirlpool Drain Hose 10'
8
285664 Whirlpool Drain Hose
9
WP3351744 Whirlpool Timer
11
WP90767 Whirlpool Screw
12
Switch, Water Level
13
Bracket, Control
14
Cord, Power
15
Strain Relief, Power Cord
16
Cap, End (L.H.)
17
WP96160 Whirlpool Washer Inlet Valve Screen
18
285805 Whirlpool Washer Water Inlet Valve
19
WP3351614 Whirlpool Screw
20
SCREW
22
HOSE
23
WP596669 Whirlpool Hose Clamp
24
WP3347034 Whirlpool Vacuum Break
25
WP8519200 Whirlpool Support Assembly
26
WPW10358149 Whirlpool Hose
28
WP3348552 Whirlpool Hose
30
WP371502 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
35
Switch, Water Temperature
36
WP356418 Whirlpool Screw
37
Knob, Water Level
39
Panel, Console
40
WP689559 Whirlpool Nut
44
280193 Whirlpool Timer Knob
45
Dial, Timer
47
Knob, Temperature
48
WP356138 Whirlpool Hose Clamp
49
WPL 64211
50
WP3390631 Whirlpool Screw
51
Cap, End (R.H.)
54
WPL 364089
55
WP308685 Whirlpool Microwave Screw
56
WPL 3350222
57
WP616099 Whirlpool Clamp
58
WP384496 Whirlpool Hose Coupling
←
