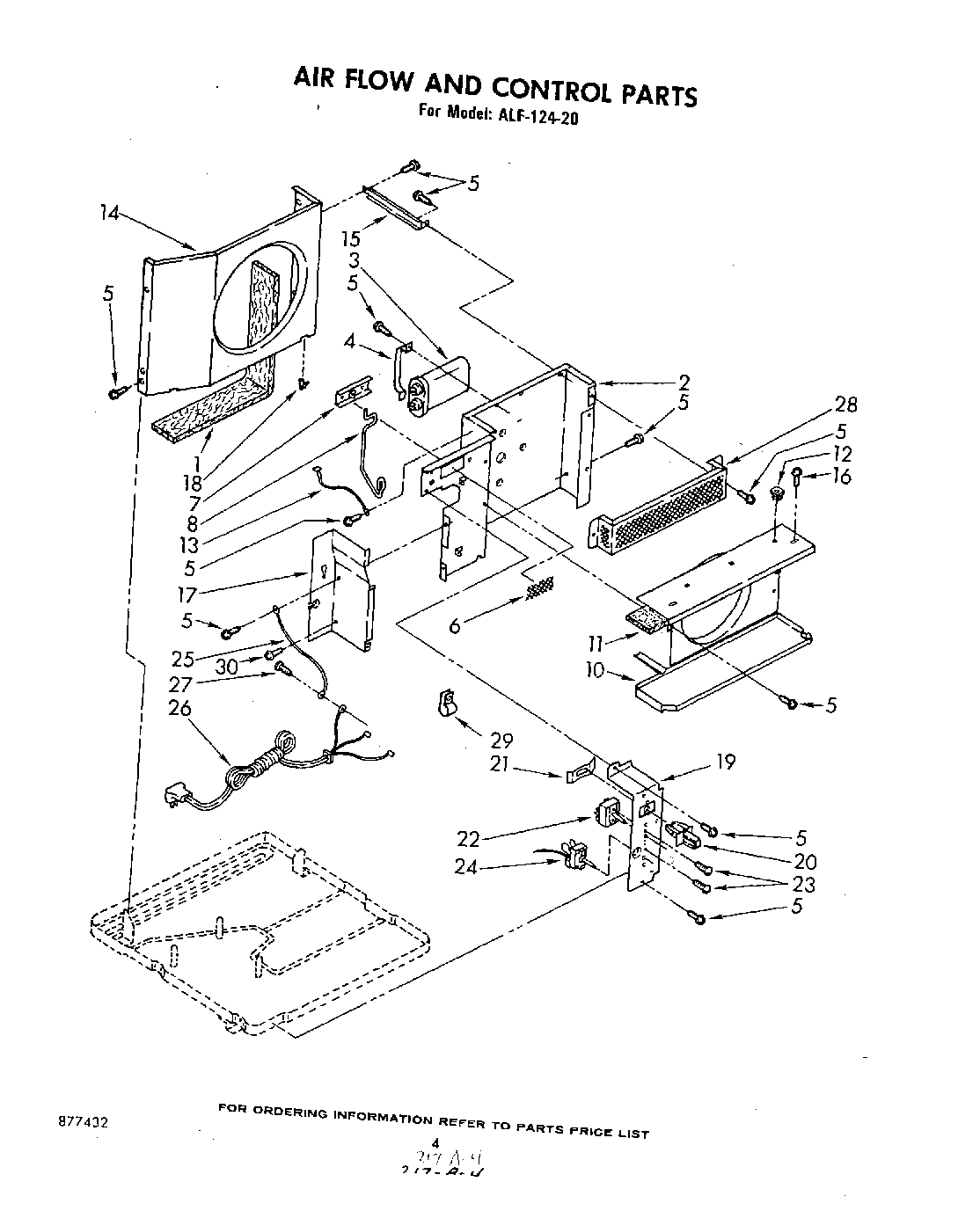

ALF12420 03 – SECTION

Products

Position	Product
1	WP854334 Whirlpool Air Conditioner Sealing Strip
2	Dividing Wall Assembly (Requires Insulation Part No. 469938)
3	Capacitor, Running
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
5	Screw, Repair
6	Screen, Exhaust Door
7	Door, Exhaust
8	Arm, Door
10	Shro\ud,\ Evaporator (Includes Item 11)
11	Insulation, Evaporator Cover
12	Fastener, snap (2)
13	Wire, Ground
14	Shroud, Condenser
15	support, unit (2)
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall (Requires Insulation Part No. 469938)
18	Clip, Retainer
19	Panel, Control
20	Actuator, Exhaust Door
21	Spring, Retainer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Tempetature
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Guard, Evaporator Impeller
29	Clip, Wiring
30	Sheet, Service Tech (Ser
30	WPL 950128
30	List, Repair Parts
30	WPL 950160
30	WPL 947596
30	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30	Wire, 25“ Roll (White 12 GA.)
30	Screw, 8 x 3/8
30	WPL 799351
30	Insulation, Fiberglass (1/4“ x 24“ x 48“)
30	Wire, Red, (25 Ft.)
30	Lacquer, Starlight Gray (1/2 Pt. Uncut)
30	WPL 649939
30	Wire, 25“ Roll (Black 12 GA.)
30	212643 Whirlpool Refrigerator Permagum Sealer
