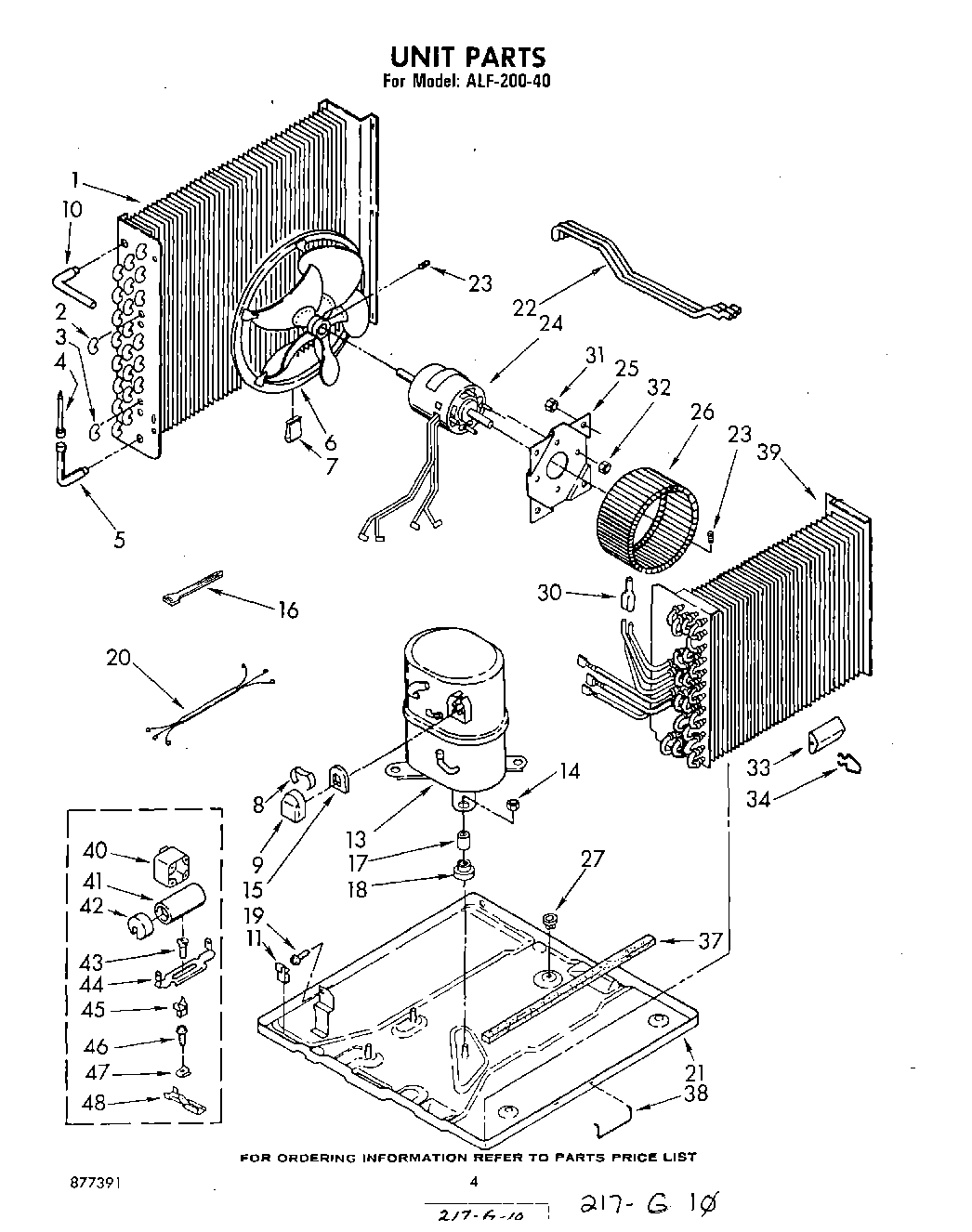

ALF20040 03 – UNIT

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (11)
3	WP855199 Whirlpool Bend Return
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Strap, Terminal Cover
9	Cover, Terminal
10	Tube, 90~ Connect
11	Clamp (2)
13	Compressor
14	Locknut (3)
15	Gasket, Terminal
16	WPW10339879 Whirlpool Wire Tie
17	Sleeve (4)
18	Grommet (4)
19	WP308685 Whirlpool Microwave Screw
19	WP489069 Whirlpool Compactor Screw
20	Harness, Wiring
21	Base
22	Tube Restrictor (3)
23	Setscrew, 5/16 x 1/4
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Bushing, Base
30	Tube, Flow Divider
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
37	Seal
38	WPL 647971
39	Evaporator
40	Relay (Component Of Start Kit)
41	Capacitor (Component Of Start Kit)
42	Cap, Capacitor (Component Of Start Kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	xMultiplier, Terminal
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	Clip, Terminal (Component Of Start Kit)
