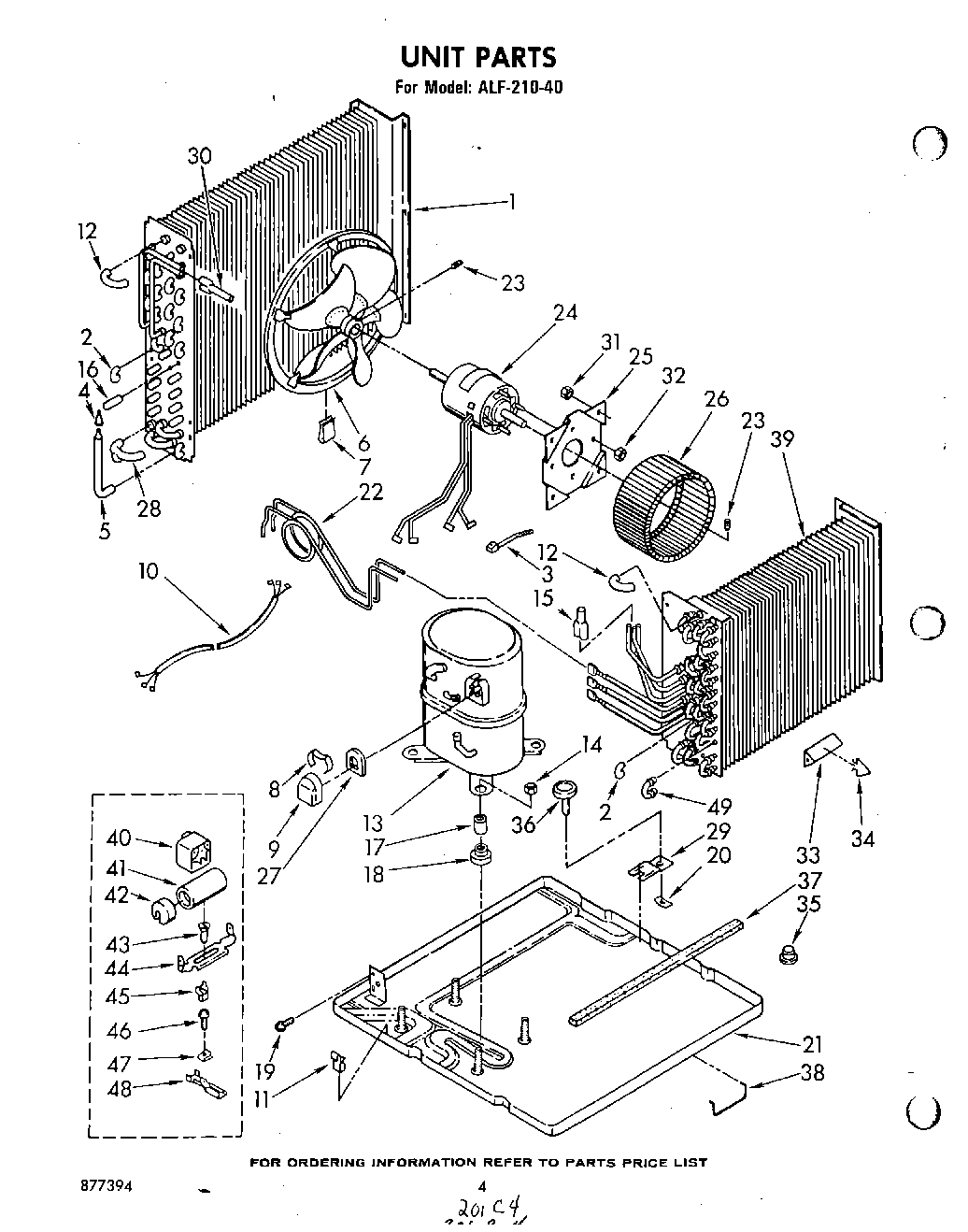

ALF21040 03 – UNIT

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (11)
3	WPW10339879 Whirlpool Wire Tie
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Strap, Terminal Cover
9	Cover, Terminal
10	Harness, Wiring
11	Clamp (2)
12	Bend, Return Condenser (3) Evaporator (1)
13	Compressor
14	Locknut (3)
16	WP855199 Whirlpool Bend Return
17	Sleeve (4)
18	Grommet (4)
19	WP488729 Whirlpool Refrigerator Door Screw
20	Speed Nut
21	Base
22	Tube Restrictor (3)
23	Setscrew, 5/16 x 1/4
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Gasket, Terminal Cover
28	Bend, Return (3-Way)
29	Holder, Cup
30	Tube, Flow Divider
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Bushing, Base
36	Cup, Condensate Drain
37	Seal
38	WPL 647971
39	Evaporator
40	xRelay
41	xCapacitor
42	xCap, Capacitor
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	xMultiplier, Terminal
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	Clip, Terminal (Component Of Start Kit)
49	978026 Whirlpool Refrigerator Primary Valve
49	WP978025 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (5/8“)
49	Bend, Return (4)
49	978027 Whirlpool Refrigerator Primary Valve
49	978030 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (1/2“)
49	Oil, Turbine 1 Fl. Oz.
49	Kit, Evaporator Repair (Aluminum Epoxy)
49	No Drip Tape (For Sweating Tubes)
49	WPL 484220
49	Hard Start Kit
