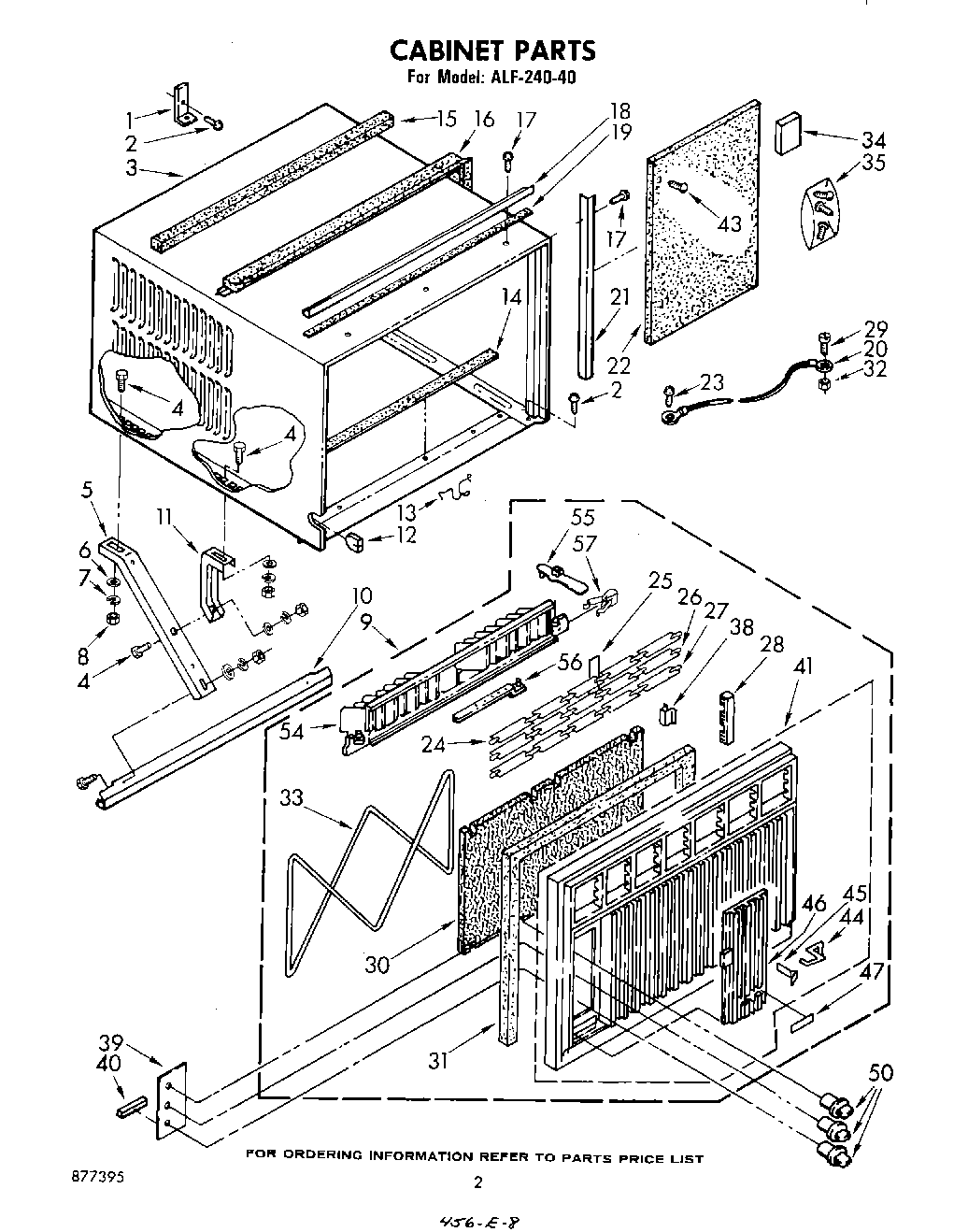

ALF24040 02 – CABINET

Products

Position	Product
1	Bracket
2	Screw (Window Lock Bracket)
3	Cabinet Also order Insulation NO.1157053 (3)
4	Bolt, 1/4 x 3/4 (6)
5	Support, Cabinet (2)
6	WP120393 Whirlpool Washer Assembly
7	Lockwasher (6)
8	Nut, Hex (6)
9	Front, Cabinet (Complete)
10	Bracket, Support
11	Support, Retainer (2)
12	Grommet, Appliance Cable
13	Clip, Mtg. (3)
14	Seal, Bottom
15	Gasket, Meeting Rail
16	Gasket, Sash
17	WP308685 Whirlpool Microwave Screw
18	Angle, Top Mounting
19	Strip, Seal
20	Wire, Ground
21	Angle (2)
22	Board, Filler
23	Screw, 8 x 3/8
24	Louver, Horizontal (4)
25	Retainer (4)
26	Louver, Horizontal (Handle)
27	Louver, Horizontal (Relieved)
28	Rack, Louver (2)
29	Screw, 8 x 3/8
30	Filter, Air
31	Seal, Front (Top & Sides)
31	Seal, Front (Bottom)
32	WP486255 Whirlpool Air Conditioner Nut
33	Retainer, Filter
34	Spacer, Block (4)
35	Bag, Accessory
38	Clip, Retainer (4)
39	Plate, Escutcheon
40	Spacer, Escutcheon Plate (2)
41	Frame, Front (Includes Illus. 44, 45 & 46)
43	WP965173 Whirlpool Dishwasher Screw
44	Pin, Hinge
45	Spring, Catch
46	Door, Control
47	Nameplate
50	Knob, Control
54	Louver, Vertical
55	Handle, Vertical Louver (2)
56	Link, Vertical Louver (2)
57	Detent Spring (2)
