ALFH0820 02 – SECTION

ALFH0820 02 – SECTION

Written by

in

ALFH0820 02 – SECTION

Products

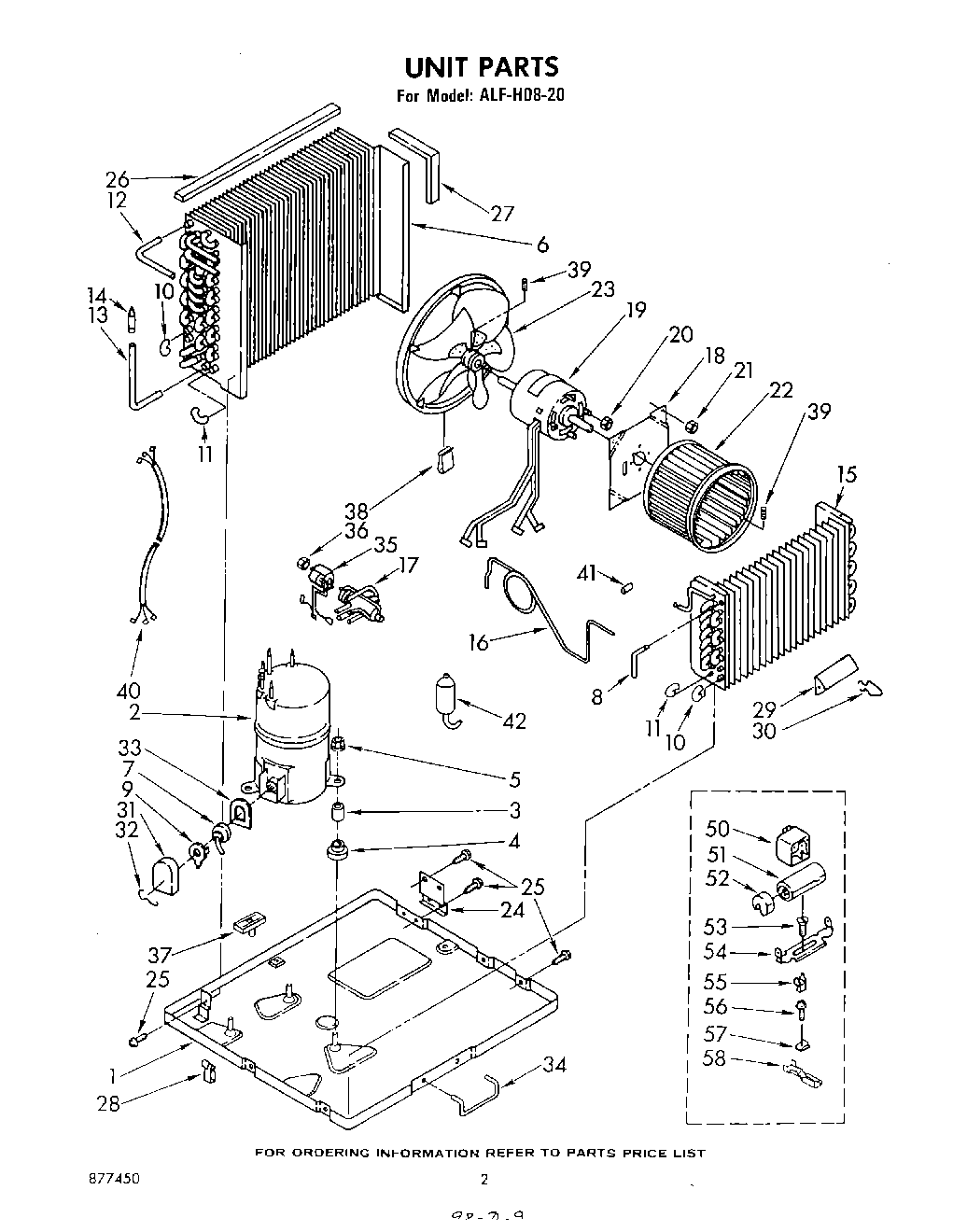

PositionProduct
WPL ARI144158A
1Base
2Compressor
3Sleeve, Compressor (3)
4Grommet, Compressor (3)
5Locknut (3)
6Condenser
7Overload
8Bend, 90~
9Spring, Overload
10Bend, Return Evaporator (11)
11Bend, Return Condenser (4) Evaportor (10)
12Tube Inlet
13Tube & Strainer (Includes Item 23)
14Strainer
15Evaporator
16Tube, Restrictor
17Reversing Valve (Use W/852978)
18WPL 998024
19Motor, Fan
20WP488130 Whirlpool Air Conditioner Nut
21Nut, Hex (4)
22Wheel, Blower
23Blade, Fan
24WPL 647824
25WP489069 Whirlpool Compactor Screw
26WPL 649609
27WPL 649610
28Clamp (2)
29Anticipator, Temperature
30Clip, Anticipator
31Cover, Terminal
32Strap, Terminal Cover
33Gasket, Terminal Cover
34WPL 647971
35Solenoid Coil (Use W/467396)
36WP488826 Whirlpool Nut
37WPL 647850
38Clip, Balancing
39Setscrew, 5/16 x 1/4
40Harness, Wiring
41Strainer
42Accumulator Assembly
50Relay (Component Of Start Kit)
51capacitor (component of start kit)
52cap, capacitor (component of start kit)
53Bracket, Capacitor (Component Of Start Kit)
54Screw, 10 x 5/8 (Component Of Start Kit)
55488660 Whirlpool Refrigerator Nut
56WP965173 Whirlpool Dishwasher Screw
57Multiplier, Terminal (Component Of Start Kit)
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (5/8“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58Oil, Turbine 1 Fl. Oz.
58Kit, Evaporator Repair (Aluminum Epoxy)
58No Drip Tape (For Sweating Tubes)
58WPL 484220
58WPL 485608
58Clip, Terminal (Component Of Start Kit)
