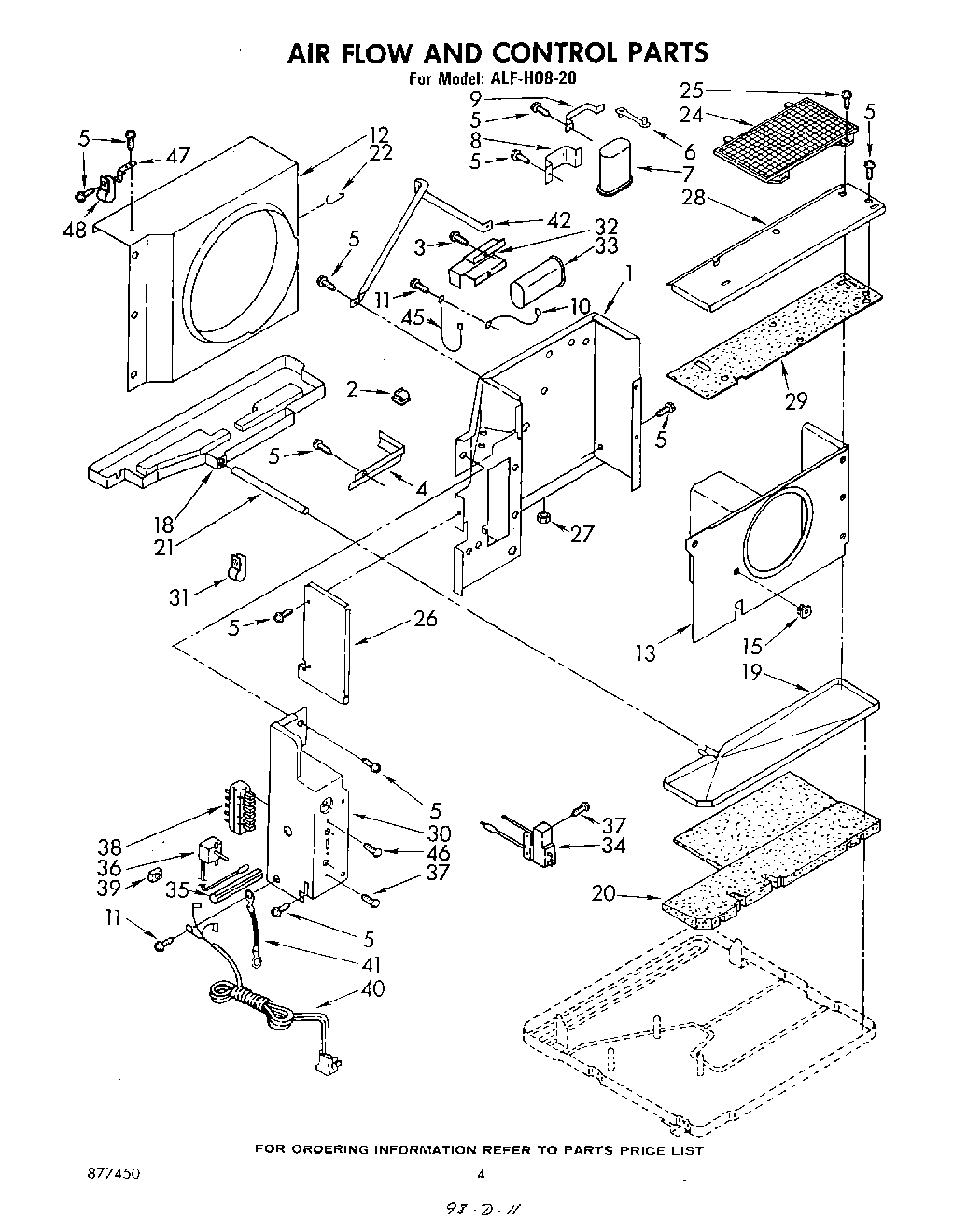

ALFH0820 03 – SECTION

Products

Position	Product
1	Wall
2	Capillary Clamp
3	Screw, Repair
4	Channel, Wiring
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Cable
7	Capacitor, Compressor
8	Bracket (Upper)
9	Bracket (Lower)
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Shroud, Condenser
13	Housing, Blower Wheel
15	Fastener, snap (2)
18	Pan, Condensate
19	Pan, Evaporator Condensate
20	Insulation, Condensate Pan
21	Tube, Condensate
22	Clip, Shroud (3)
24	Guard, Evaporator Impeller
25	WP488729 Whirlpool Refrigerator Door Screw
26	Dividing Wall Assembly, L.S.
27	Clip, Speed
28	Cover, Evaporator
29	Insulation, Evaporator Cover
30	Box, Control
31	Clamp, Cable
32	Bracket, Fan Motor Capacitor
33	Capacitor, Fan Motor
34	Thermostat De-Icer
35	Insulation, Sleeve
36	Control, Temperature
37	Screw, 6-32 x .175
38	Switch, Pushbutton
39	Grommet
40	Cable, Appliance
41	Wire, Ground
42	Support, Unit
45	Ground Wire
46	Screw, 6-20 x .362
47	Bracket
48	212643 Whirlpool Refrigerator Permagum Sealer
48	Wire, Red, (25 Ft.)
48	Lacquer, Starlight Gray (1/2 Pt. Uncut)
48	Cover, Winter (27 x 19 x 6 to 27“)
48	WPL 799351
48	WPL 877450
48	WPL 949789
48	WPL 950122
48	Insulation, Fiberglass (1/4“ x 24“ x 48“)
48	WPL 647846
48	Wire, 25“ Roll (White 12 GA.)
48	WPL 647848
48	Seal
48	Clamp
48	WPL 647847
48	Wire, 25“ Roll (Black 12 GA.)
48	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
48	WP854334 Whirlpool Air Conditioner Sealing Strip
48	WPL 947599
48	WPL 998376
