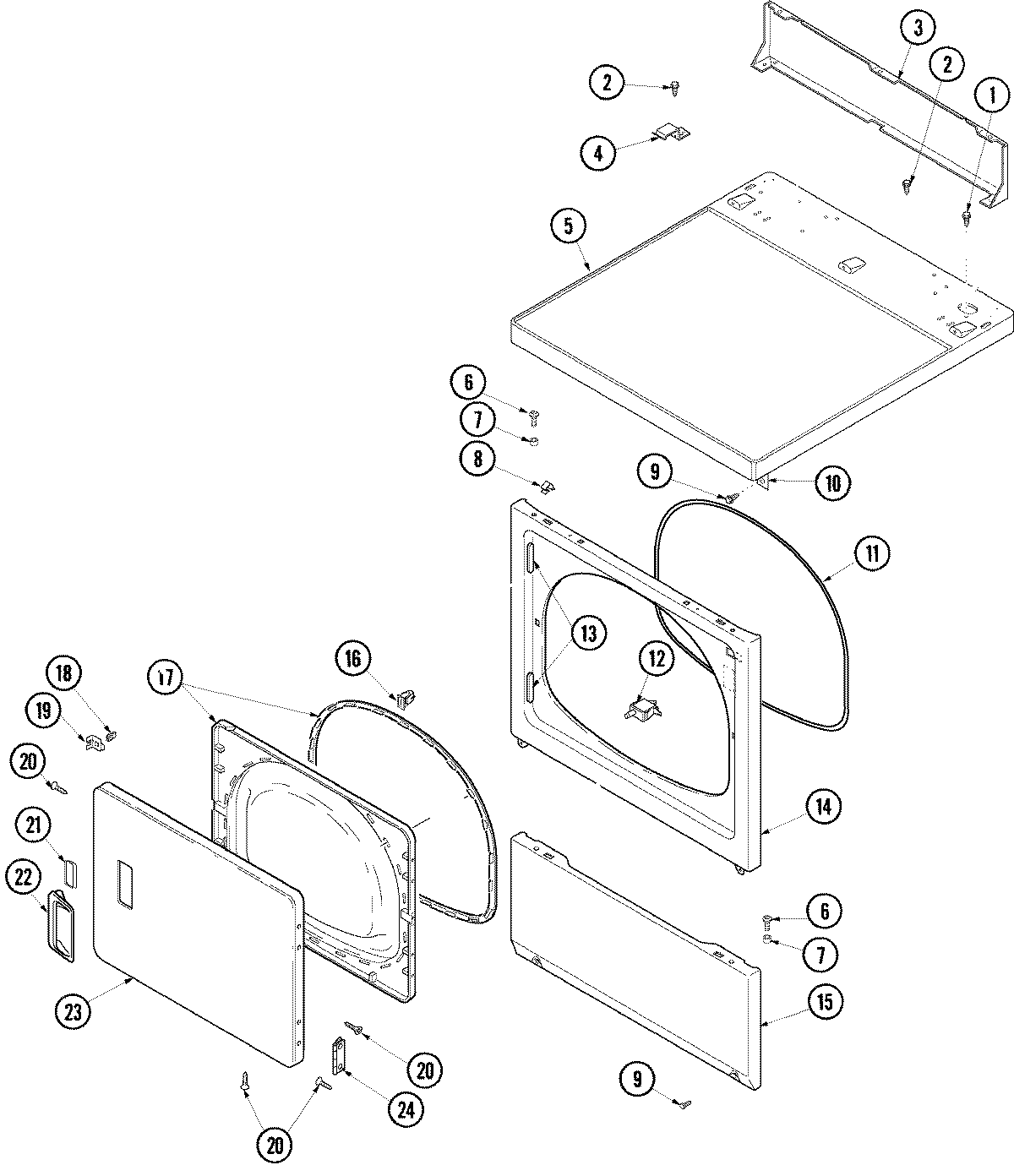

ALG443RAC 03 – DOOR, FRONT, ACCESS AND TOP PANELS

Written by

Products

Position	Product
1	WP3390631 Whirlpool Screw
2	MAY 501086
3	MAY 40121401
4	MAY Y503876
5	MAY 40114301CP
6	MAY 32671
7	MAY 505187
8	MAY 56080
9	MAY 503661
10	MAY 40130801
11	MAY 504005
12	W10169313 Whirlpool Door Switch Kit
13	MAY 503126
14	MAY 503656CP
15	MAY 40045301CP
16	MAY 54660
17	MAY 503643W
17	MAY 37001028
18	MAY 500039
19	MAY 40116201
20	MAY 500226
21	MAY 505328
21	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22	MAY 503646C
22	MAY 37001047
23	MAY 37001034
23	MAY 503654CP
