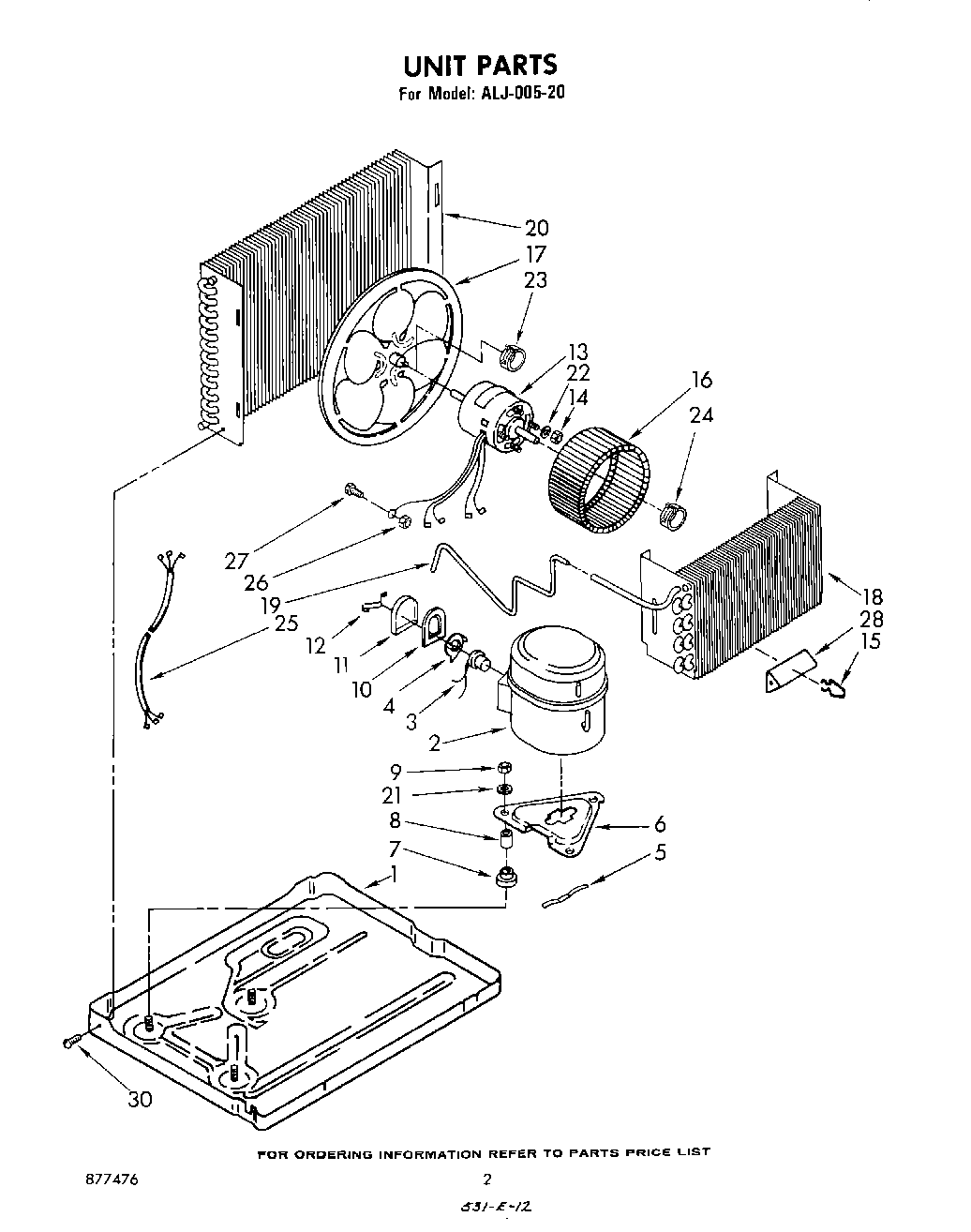

ALJ00520 02 – SECTION

Products

Position	Product
1	Base
2	Compressor
3	Overload
4	Spring, Overload
5	Spring, Compressor Mounting
6	spring, compressor mounting
7	Grommet, Compressor Mounting (3)
8	Sleeve, Compressor Mounting (3)
9	nut, 5/16-18 (3)
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Retainer, Terminal
13	Motor, Fan
15	Clip, Temperature Anticipator
16	Wheel, Blower (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	WP120393 Whirlpool Washer Assembly
22	Spacer, Washer (4)
23	Clip, Fan Mounting
24	Clip, Wheel Mounting
25	Harness, Wiring
26	WP488130 Whirlpool Air Conditioner Nut
27	WP489128 Whirlpool Refrigerator Screw
28	Anticipator, Temperature
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WP488729 Whirlpool Refrigerator Door Screw
30	978027 Whirlpool Refrigerator Primary Valve
30	VALVE, ACCESS (5/8“)
30	List, Repair Parts
30	WPL 980718
30	WPL 980755
30	WPL 799351
30	978026 Whirlpool Refrigerator Primary Valve
30	Wire, 25“ Roll (White 12 GA.)
30	Wire, 25“ Roll (Black 12 GA.)
30	Oil, Turbine 1 Fl. Oz.
30	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30	Wire, Red, (25 Ft.)
30	Kit, Evaporator Repair (Aluminum Epoxy)
30	Lacquer, Starlight Gray (1/2 Pt. Uncut)
30	No Drip Tape (For Sweating Tubes)
30	Insulation, Fiberglass (1/4“ x 24“ x 48“)
30	VALVE, ACCESS (1/2“)
30	WP978025 Whirlpool Refrigerator Valve
30	978030 Whirlpool Refrigerator Valve
30	WPL 980756
